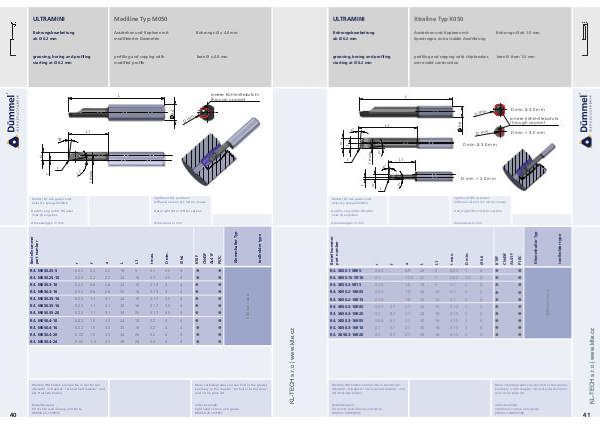

ULTRAMINI Mediline Typ M050 Bohrungsbearbeitung ab Ø 0.2 mm Ausdrehen und Kopieren mit modifizierter Geometrie Bohrungs-Ø ≤ 4.0 mm grooving, boring and profiling starting at Ø 0.2 mm profiling and copying with modified profile bore Ø ≤ 4.0 mm innere Kühlmittelzufuhr through coolant L D n. mi L1 40 19 5 0.1 2.5 4   R/L M050.25-10 0.02 0.2 2.2 24 10 0.1 2.5 4   R/L M050.3-10 0.02 0.6 2.6 24 10 0.15 3 4   R/L M050.3-16 0.02 0.6 2.6 30 16 0.15 3 4   R/L M050.35-10 0.02 1.1 3.1 24 10 0.17 3.5 4   R/L M050.35-16 0.02 1.1 3.1 30 16 0.17 3.5 4   R/L M050.35-20 0.02 1.1 3.1 34 20 0.17 3.5 4   R/L M050.4-10 0.02 1.5 3.5 24 10 0.2 4 4   R/L M050.4-16 0.02 1.5 3.5 30 16 0.2 4 4   R/L M050.4-20 0.02 1.5 3.5 34 20 0.2 4 4   R/L M050.4-24 0.02 1.5 3.5 38 24 0.2 4 4   Weitere HM Sorten können Sie in der Sorten- übersicht im Kapitel "Technische Hinweise" und der Preisliste finden. More carbide grades you can find in the grades summary in the chapter "technical instructions" and in the price list. Bestellbeispiel: für rechte Ausführung und Sorte RM050.25-10/P07C order-example: righthand version and grade RM050.25-10/P07C 2.2 toolholder 0.2 0.02 R/L M050.25-5 dimensions in mm Abmessungen in mm state right (R) or left (L) version Ausführung rechts (R) oder links (L) angeben righthand (R): as shown lefthand version (L): mirror image Rechts (R): wie gezeichnet Links (L): spiegelbildlich ° 11 Typ r 8°
