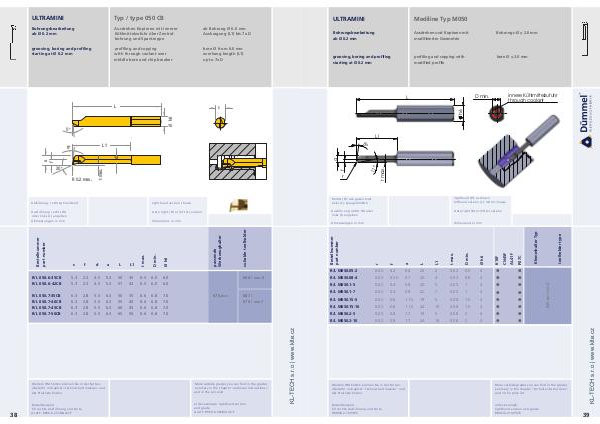

ULTRAMINI Mediline Typ M050 Bohrungsbearbeitung
ab Ø 0.2 mm Ausdrehen und Kopieren mit
modifizierter Geometrie Bohrungs-Ø ≤ 2.0 mm
grooving, boring and profiling
starting at Ø 0.2 mm profiling and copying with
modified profile bore Ø ≤ 2.0 mm
innere Kühlmittelzufuhr
through coolant
D min.
L
L1
2 0.02 0.5 4
20 4 0.03 0.8 4
R/L M050.1-5 0.02 0.4 0.9 20 5 0.05 1 4
R/L M050.1-7 0.02 0.4 0.9 22 7 0.05 1 4
R/L M050.15-5 0.02 0.6 1.15 19 5 0.08 1.5 4
R/L M050.15-10 0.02 0.6 1.15 24 10 0.08 1.5 4
R/L M050.2-5 0.02 0.8 1.7 19 5 0.08 2 4
R/L M050.2-10 0.02 0.8 1.7 24 10 0.08 2 4
Weitere HM Sorten können Sie in der Sorten-
übersicht im Kapitel "Technische Hinweise" und
der Preisliste finden. More carbide grades you can find in the grades
summary in the chapter "technical instructions"
and in the price list.
Bestellbeispiel:
für rechte Ausführung und Sorte
RM050.2-10/P07C order-example:
righthand version and grade
RM050.2-10/P07C
20 0.7
toolholder
0.4 0.35 0.2 0.02 0.02 R/L M050.08-4 R/L M050.05-2 dimensions in mm
Abmessungen in mm state right (R) or left (L) version
Ausführung rechts (R) oder
links (L) angeben righthand (R): as shown
lefthand version (L): mirror image
Rechts (R): wie gezeichnet
Links (L): spiegelbildlich
Typ
r
8°
39
