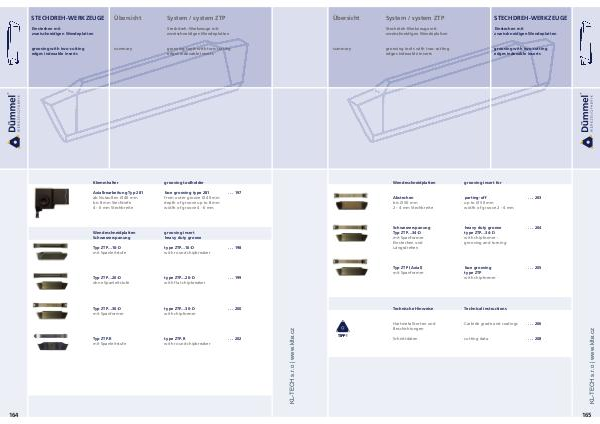

Übersicht
Einstechen mit
zweischneidigen Wendeplatten
grooving with two-cutting
edges indexable inserts
164
System / system ZTP
Stechdreh-Werkzeuge mit
zweischneidigen Wendeplatten
summary
grooving tools with two-cutting
edges indexable inserts
Klemmhalter grooving toolholder Axialbearbeitung Typ 281
ab Nutaußen Ø 40 mm
bis 8 mm Stechtiefe
4 - 6 mm Stechbreite face grooving type 281
from outer groove Ø 40 mm
depth of groove up to 8 mm
width of groove 4 - 6 mm Wendeschneidplatten
Schwerzerspanung grooving insert
heavy duty groove Typ ZTP…10-D
mit Spanleitstufe type ZTP…10-D
with round chipbreaker . . . 198
Typ ZTP…20-D
ohne Spanleitstufe type ZTP…20-D
with flat chipbreaker . . . 199
Typ ZTP…30-D
mit Spanformer type ZTP…30-D
with chipformer . . . 200
Typ ZTP.R
mit Spanleitstufe type ZTP.R
with round chipbreaker . . . 202
. . . 197
Stechdreh-werkzeuge
