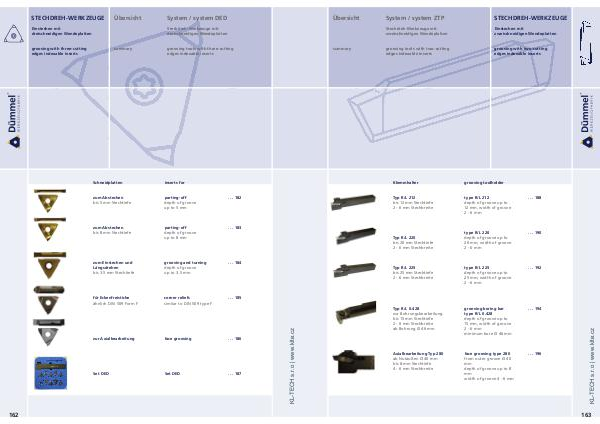

summary
System / system ZTP Stechdreh-werkzeuge
Stechdreh-Werkzeuge mit
zweischneidigen Wendeplatten Einstechen mit
zweischneidigen Wendeplatten
grooving tools with two-cutting
edges indexable inserts grooving with two-cutting
edges indexable inserts
Klemmhalter grooving toolholder Typ R/L 212
bis 12 mm Stechtiefe
2 - 6 mm Stechbreite type R/L 212
depth of groove up to
12 mm, width of groove
2 - 6 mm . . . 188
type R/L 220
depth of groove up to
20 mm, width of groove
2 - 6 mm . . . 190
Typ R/L 225
bis 25 mm Stechtiefe
2 - 6 mm Stechbreite type R/L 225
depth of groove up to
25 mm, width of groove
2 - 6 mm . . . 192
Typ R/L 0.428
zur Bohrungsbearbeitung
bis 15 mm Stechtiefe
2 - 6 mm Stechbreite
ab Bohrung Ø 46 mm grooving boring bar
type R/L 0.428
depth of groove up to
15 mm, width of groove
2 - 6 mm
minimum bore Ø 46 mm . . . 194
Axialbearbeitung Typ 280
ab Nutaußen Ø 40 mm
bis 8 mm Stechtiefe
4 - 6 mm Stechbreite face grooving type 280
from outer groove Ø 40
mm
depth of groove up to 8
mm
width of groove 4 - 6 mm . . . 196
Typ R/L 220
bis 20 mm Stechtiefe
2 - 6 mm Stechbreite
Übersicht
163
