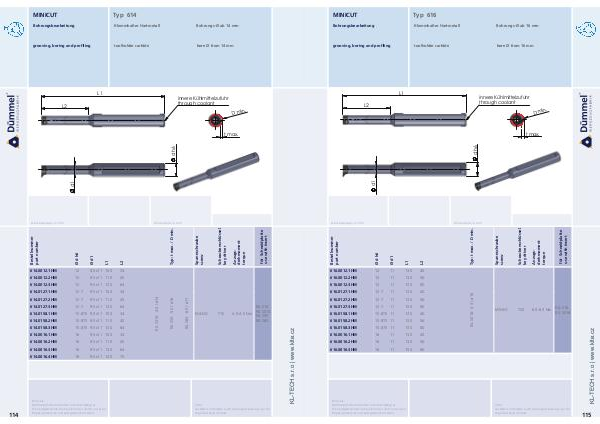

MINICUT Typ 616 Bohrungsbearbeitung Klemmhalter Hartmetall Bohrungs-Ø ab 16 mm grooving, boring and profiling toolholder carbide bore Ø from 16 mm L1 innere Kühlmittelzufuhr through coolant L2 in. D m t max. 616.0012.3HM 12 11 150 80 616.0127.1HM 12.7 11 130 40 616.0127.2HM 12.7 11 130 56 616.0127.3HM 12.7 11 150 80 616.0158.1HM 15.875 11 130 40 616.0158.2HM 15.875 11 130 56 616.0158.3HM 15.875 11 150 80 616.0016.1HM 16 11 130 40 616.0016.2HM 16 11 130 56 616.0016.3HM 16 11 150 80 Hinweis: Hartmetall-Klemmhalter mit beschädigter Schneidplattenaufnahme können durch unseren Reparaturservice instand gesetzt werden. T20 6.0-6.5 Nm für M5-MC R/L S16 R/L S016 note: carbide-toolholder with damaged seating can be repaired by Dümmel. 40 56 130 130 11 11 12 12 616.0012.1HM 616.0012.2HM dimensions in mm Abmessungen in mm 115
