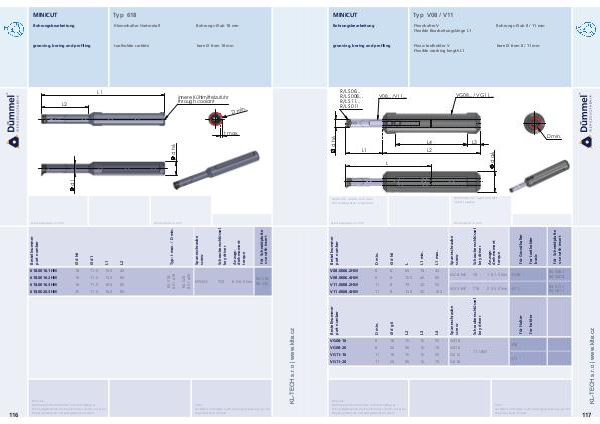

MINICUT Typ 618 Bohrungsbearbeitung Klemmhalter Hartmetall Bohrungs-Ø ab 18 mm
grooving, boring and profiling toolholder carbide bore Ø from 18 mm
L1
innere Kühlmittelzufuhr
through coolant
L2
in.
D m
t max.
16 11.5 160 85
618.0020.3HM 20 11.5 160 85
Hinweis:
Hartmetall-Klemmhalter mit beschädigter
Schneidplattenaufnahme können durch unseren
Reparaturservice instand gesetzt werden.
T20 6.0-6.5 Nm
für
M5-MC
R/L S18
R/L S20
note:
carbide-toolholder with damaged seating can be
repaired by Dümmel.
618.0016.3HM drehmoment
42
60
100 130 11.5 11.5 16 16
116
618.0016.1HM 618.0016.2HM
dimensions in mm
Abmessungen in mm
