CMA
Remote Actuation Systems
ACTUATORS
DESIGN GUIDE

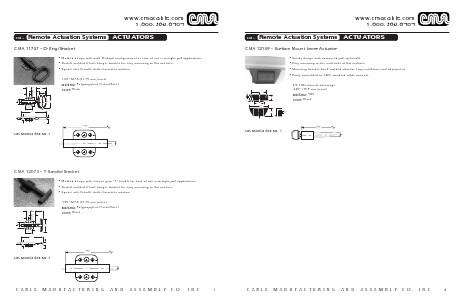

CMA 12169 – Surface Mount Lever Actuator
• Sturdy design with contoured pull up handle
• Easy mounting to the underside of flat surfaces
• Mounting bracket has 2 molded slots for easy installation and adjustment
• Easily assembled to CMA standard cable controls
2.5:1 Mechanical advantage
.625” (15.9 mm) travel
Material: ABS
Color: Black
2.810”
.200”
1.054”
.280”
1.750”
3.450”
1.497”
Use Molded End No. 4
C A B L E
“A“
M A N U F A C T U R I N G
A N D
A S S E M B L Y
C O .
I N C .
5
