Remote Actuation Systems
CMA
ACTUATORS
DESIGN GUIDE

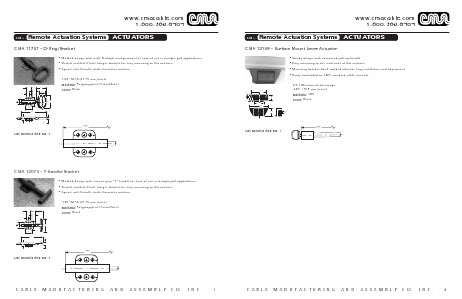

CMA 11767 – D-Ring/Bracket
• Molded design with wide D shape configuration for ease of use in straight pull applications
• Shuttle molded 6-hole hanger bracket for easy mounting to flat surfaces
• Square steel handle shaft eliminates rotation
➤ .750 ➤
➤
➤
.65 ➤
➤
1"
➤
➤
.375 ➤
➤
2"
➤
1.25" MAX (31.75 mm) travel
Material: Polypropylene/Acetal/Steel
Color: Black
➤
➤
1.100
➤
➤
2 5/8"
➤
1 5/16" 1 11/16"
➤
➤
4.7 "
➤
➤
➤
➤
➤
➤
.60"
5/16"
“A“
Use Molded End No. 7
CMA 12073 – T-Handle/Bracket
• Molded design with easy to grip "T" handle for ease of use in straight pull applications
• Shuttle molded 6-hole hanger bracket for easy mounting to flat surfaces
• Square steel handle shaft eliminates rotation
➤ .750 ➤
➤
1 9/ 16"
1.25" MAX (31.75 mm) travel
Material: Polypropylene/Acetal/Steel
Color: Black
➤
➤ .65 ➤
➤
➤
.375 ➤
➤
➤
1.100
➤
➤
2 1/ 4"
1 5/16" 1 11/16"
➤
➤
➤
➤
3.52
➤
➤
➤
➤
➤
.60"
5/ 8"
“A“
Use Molded End No. 7
