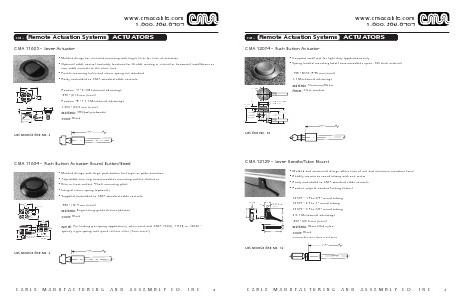

Remote Actuation Systems

ACTUATORS

DESIGN GUIDE

CMA 12074 – Push Button Actuator
• Compact small size for light duty applications only
• Spring loaded mounting bezel accommodates up to .120 thick material
.195" MAX (4.95 mm) travel
1:1 Mechanical advantage
Material: Aluminum/Delrin
1.13 DIA

Finish: Clear anodize

.16
(4,1)

.875 DIA. (22,22) MAX.
.720 DIA. (18,29)

1.28 REF.
(32,5)

1.38.03
(35,050,76)
1.12.03
(28,450,76)

.120 MAX.
(3,05)
MOUNTING
THICKNESS

“A“

Use End No. 12

CMA 12129 – Lever Handle/Tube Mount
• Molded and contoured design offers ease of use and maximum actuation force
• Readily mounts to round tubing with one screw
• Easily assembled to CMA standard cable controls
• Positive snap fit conduit-locking feature
12129 – 1 Fits 3/4" round tubing
.44

➤

➤

➤

➤

#8 TYPE B
SHEET METAL
SCREW

➤

➤

➤

1.85

2.83

➤

➤

➤

1.48

1.11

➤

➤

TUBE DIA.

12129 – 2 Fits 1" round tubing
12129 – 3 Fits 7/8" round tubing
2.5:1 Mechanical advantage
.800" (20.3 mm) travel

.78

➤

➤

➤

➤

1.02

➤

3.84

➤

Material: Glass filled nylon
Color: Black
Requires #8 type B sheet m
