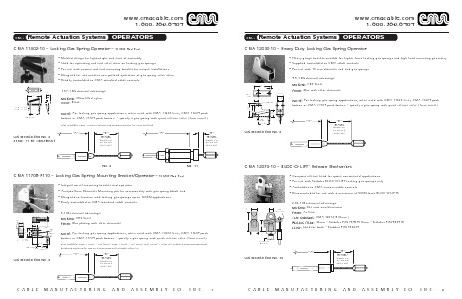

Remote Actuation Systems
CMA
OPERATORS
DESIGN GUIDE
CMA 11602-10 – Locking Gas Spring Operator – 10 MM Rod End
• Molded design for lightweight and ease of assembly
• Used for operating rod end valve stem on locking gas springs
• For use with custom rod end mounting bracket for unique installations
• Designed for intermittent non preload operation of gas spring valve stem
• Readily assembled to CMA standard cable controls
.720
➤
➤
➤
1.57:1 Mechanical advantage
➤
Material: Glass filled nylon
Color: Black
➤
2.365
Ø 8M x 1.0 THD
Ø 10M x 1.0 THD
➤ 1.56
C
L
GAS SPRING
NOTE: For locking gas spring applications, when used with CMA 11603 lever, CMA 11604 push
button or CMA 11704 push button – specify a gas spring with quick release valve (1mm travel).
➤
Also available: CMA 11602-8 Locking Gas Spring Operator for 8mm Rod End
Use Molded End No. 2
or No. 11 for Adjustment
“A“
“B“
TRAVEL
“B“
TRAVEL
“A“
(BASED ON
ACTUATOR
SELECTED)
(BASED ON
ACTUATOR
SELECTED)
No. 11
No. 2
CMA 11708-P110 – Locking Gas Spring Mounting Bracket/Operator – 10 MM Rod End
• Integral swivel mounting bracket and operator
• Accepts 8mm Diameter Mounting pin for commonality with gas spring blade end
• Designed to function with locking gas springs up to 1000N applications
• Easily assembled to CMA standard cable controls
3/32"
5:1 Mechanical advantage
Material: CRS Steel
Finish: Zinc plating with clear chromate
1"
➤
➤
13/16"
➤ ➤
➤
3/4"
➤
➤
➤
➤➤
➤
➤
11/2
.320 THRU FOR
8mm PIN
LEVER
➤
111/16 11/8
➤
➤
➤
➤
BRACKET
➤
8mm x 1.0 THD. or
10mm x 1.0 THD.
➤
➤
GAS SPRING C
L
3 1/32"
2"
➤
➤
CABLE C
L
CONTROL
NOTE: For locking gas spring applications, when used with CMA 11603 lever, CMA 11604 push
button or CMA 11704 push button – specify a gas spring with quick release valve (1mm travel).
Also available: CMA 11708P – 108 (8mm), CMA 11708P – 10 (10mm) and 11708P – 8 (8mm) Locking Gas Spring Mounting
Bracket/Operators for use on Gas Springs with Straight Valve Pin.
“A“
Use Molded End No. 2
C A B L E
“B“
TRAVEL
(BASED ON
ACTUATOR
SELECTED)
M A N U F A C T U R I N G
A N D
A S S E M B L Y
C O .
I N C .
