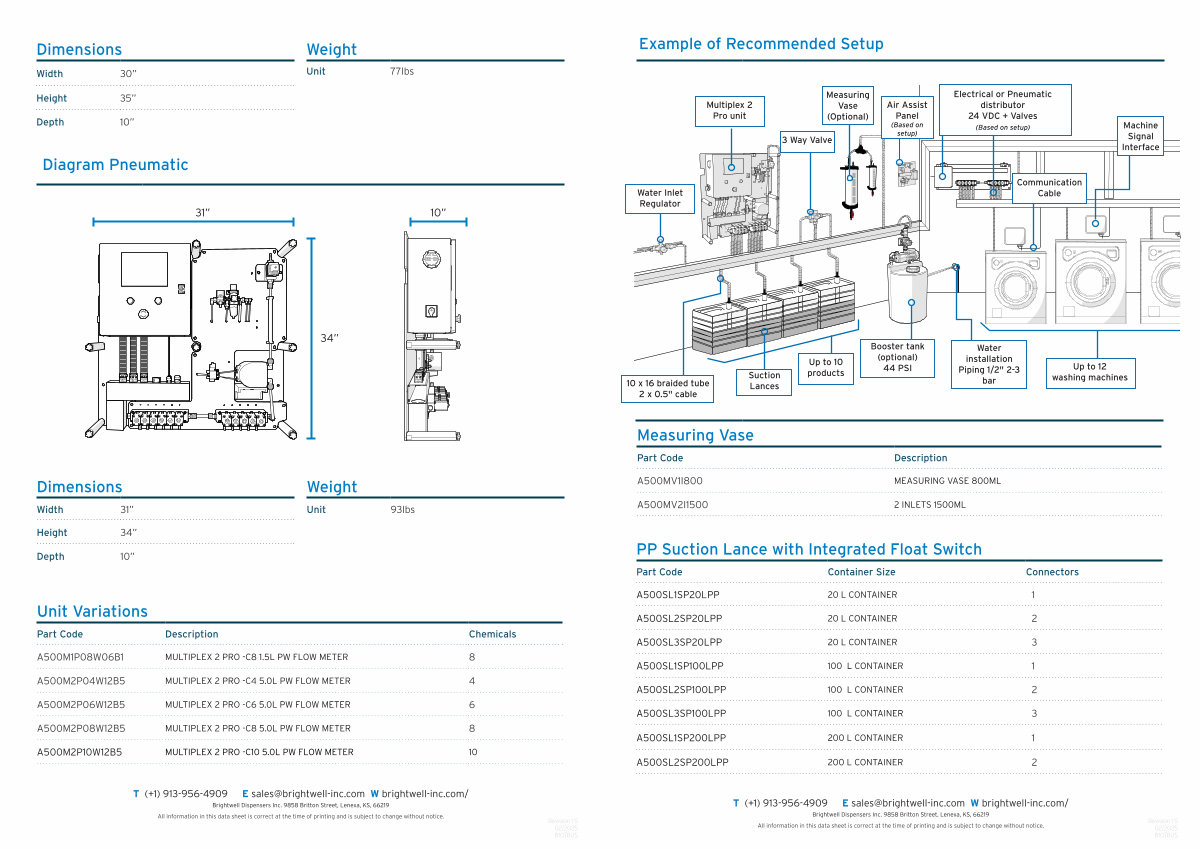

B1078US Multiplex 2 Pro Datasheet v1.4 | Page 4

Dimensions
Width 30 ”
Weight
Unit 77lbs
Height 35 ” Depth 10 ”
Diagram Pneumatic
31 ” 10 ”
34 ”
Dimensions
Width
31 ”
Height
34 ”
Depth
10 ”
Weight
Unit 93lbs
Unit Variations
Part Code
Description
Chemicals
A500M1P08W06B1
MULTIPLEX 2 PRO -C8 1.5L PW FLOW METER
8
A500M2P04W12B5
MULTIPLEX 2 PRO -C4 5.0L PW FLOW METER
4
A500M2P06W12B5
MULTIPLEX 2 PRO -C6 5.0L PW FLOW METER
6
A500M2P08W12B5
MULTIPLEX 2 PRO -C8 5.0L PW FLOW METER
8
A500M2P10W12B5
MULTIPLEX 2 PRO -C10 5.0L PW FLOW METER
10
T (+ 1 ) 913-956-4909 E sales @ brightwell-inc . com W brightwell-inc . com / Brightwell Dispensers Inc . 9858 Britton Street , Lenexa , KS , 66219 All information in this data sheet is correct at the time of printing and is subject to change without notice .
Revision 1.5 02 / 2025 B1078US
