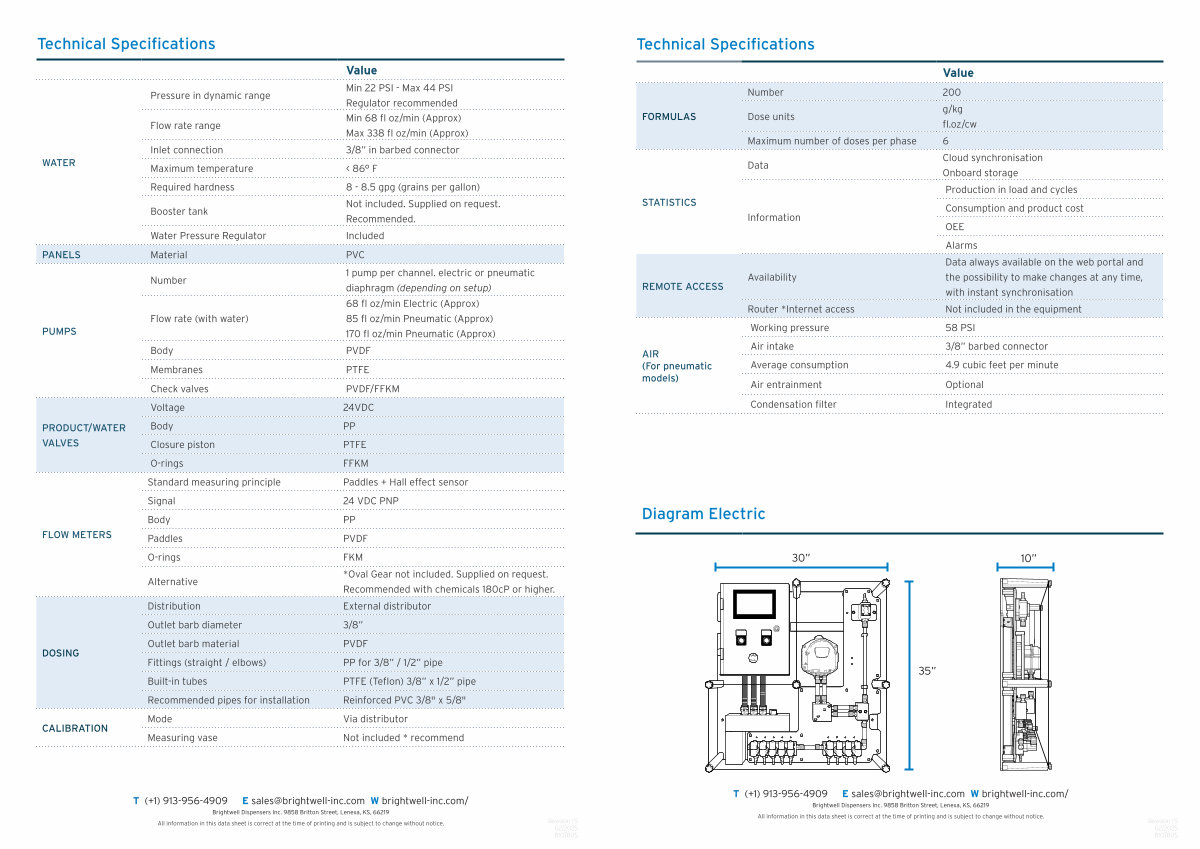

Technical Specifications
FORMULAS
STATISTICS
REMOTE ACCESS
AIR ( For pneumatic models )
Value
Number 200 g / kg
Dose units fl . oz / cw Maximum number of doses per phase 6
Cloud synchronisation
Data Onboard storage Production in load and cycles Consumption and product cost
Information
OEE Alarms Data always available on the web portal and
Availability the possibility to make changes at any time , with instant synchronisation
Router * Internet access Not included in the equipment
Working pressure 58 PSI
Air intake 3 / 8 ” barbed connector
Average consumption 4.9 cubic feet per minute
Air entrainment Optional
Condensation filter Integrated
Diagram Electric
30 ” 780 mm
10 ”
53 mm
35 ” 850 mm
T (+ 1 ) 913-956-4909 E sales @ brightwell-inc . com W brightwell-inc . com / Brightwell Dispensers Inc . 9858 Britton Street , Lenexa , KS , 66219 All information in this data sheet is correct at the time of printing and is subject to change without notice .
Revision 1.5 02 / 2025 B1078US
