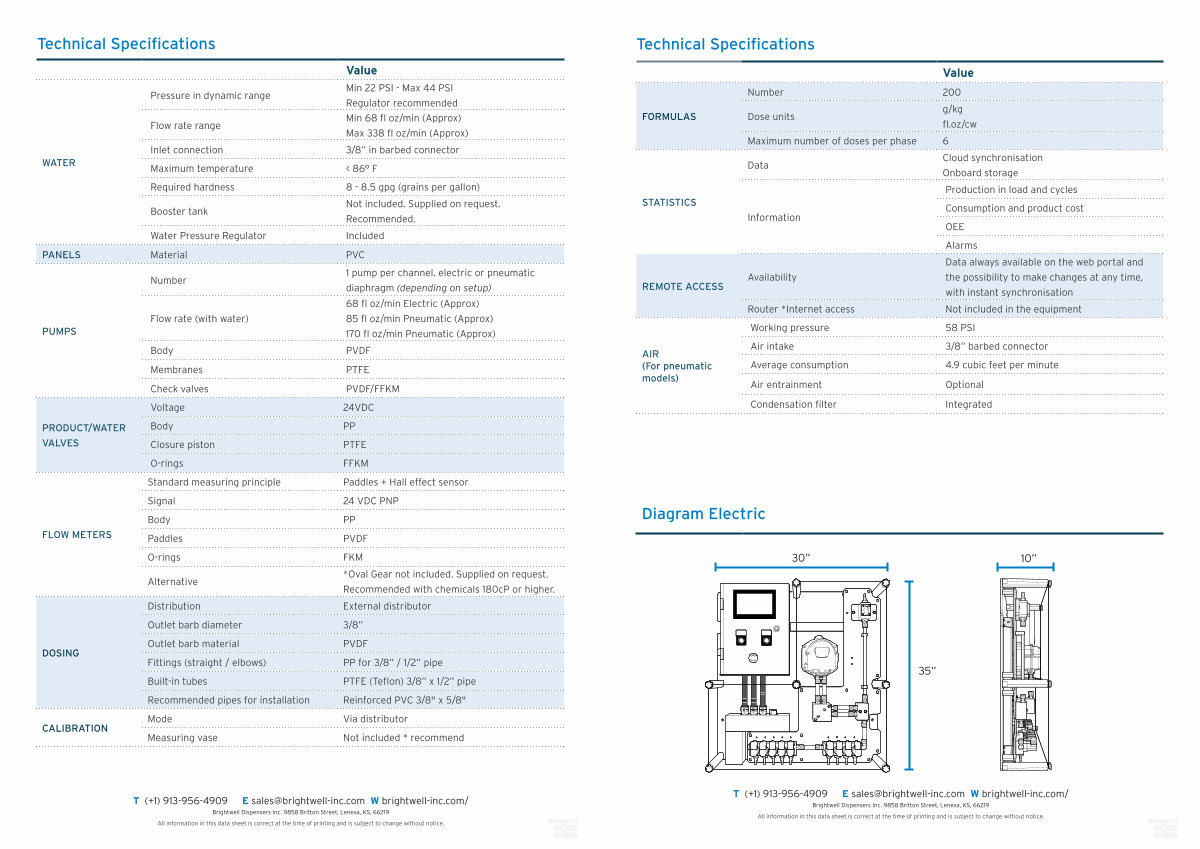

Technical Specifications
WATER
Pressure in dynamic range
Flow rate range
Inlet connection Maximum temperature
Value
Min 22 PSI - Max 44 PSI Regulator recommended Min 68 fl oz / min ( Approx ) Max 338 fl oz / min ( Approx ) 3 / 8 ” in barbed connector < 86 ° F Required hardness 8 - 8.5 gpg ( grains per gallon )
Booster tank Water Pressure Regulator
Not included . Supplied on request . Recommended . Included PANELS Material PVC
PUMPS
PRODUCT / WATER VALVES
FLOW METERS
Number
Flow rate ( with water )
Body Membranes Check valves Voltage Body Closure piston O-rings Standard measuring principle Signal Body Paddles O-rings
Alternative Distribution
1 pump per channel . electric or pneumatic diaphragm ( depending on setup ) 68 fl oz / min Electric ( Approx ) 85 fl oz / min Pneumatic ( Approx ) 170 fl oz / min Pneumatic ( Approx ) PVDF PTFE PVDF / FFKM 24VDC PP PTFE FFKM Paddles + Hall effect sensor 24 VDC PNP PP PVDF FKM * Oval Gear not included . Supplied on request . Recommended with chemicals 180cP or higher . External distributor
Outlet barb diameter 3 / 8 ”
DOSING
Outlet barb material Fittings ( straight / elbows ) Built-in tubes
PVDF PP for 3 / 8 ” / 1 / 2 ” pipe PTFE ( Teflon ) 3 / 8 ” x 1 / 2 ” pipe
Recommended pipes for installation Reinforced PVC 3 / 8 " x 5 / 8 "
CALIBRATION
Mode Measuring vase
Via distributor Not included * recommend
T (+ 1 ) 913-956-4909 E sales @ brightwell-inc . com W brightwell-inc . com / Brightwell Dispensers Inc . 9858 Britton Street , Lenexa , KS , 66219 All information in this data sheet is correct at the time of printing and is subject to change without notice .
Revision 1.5 02 / 2025 B1078US
