B1078US Multiplex 2 Pro Datasheet v1.4 | Página 5

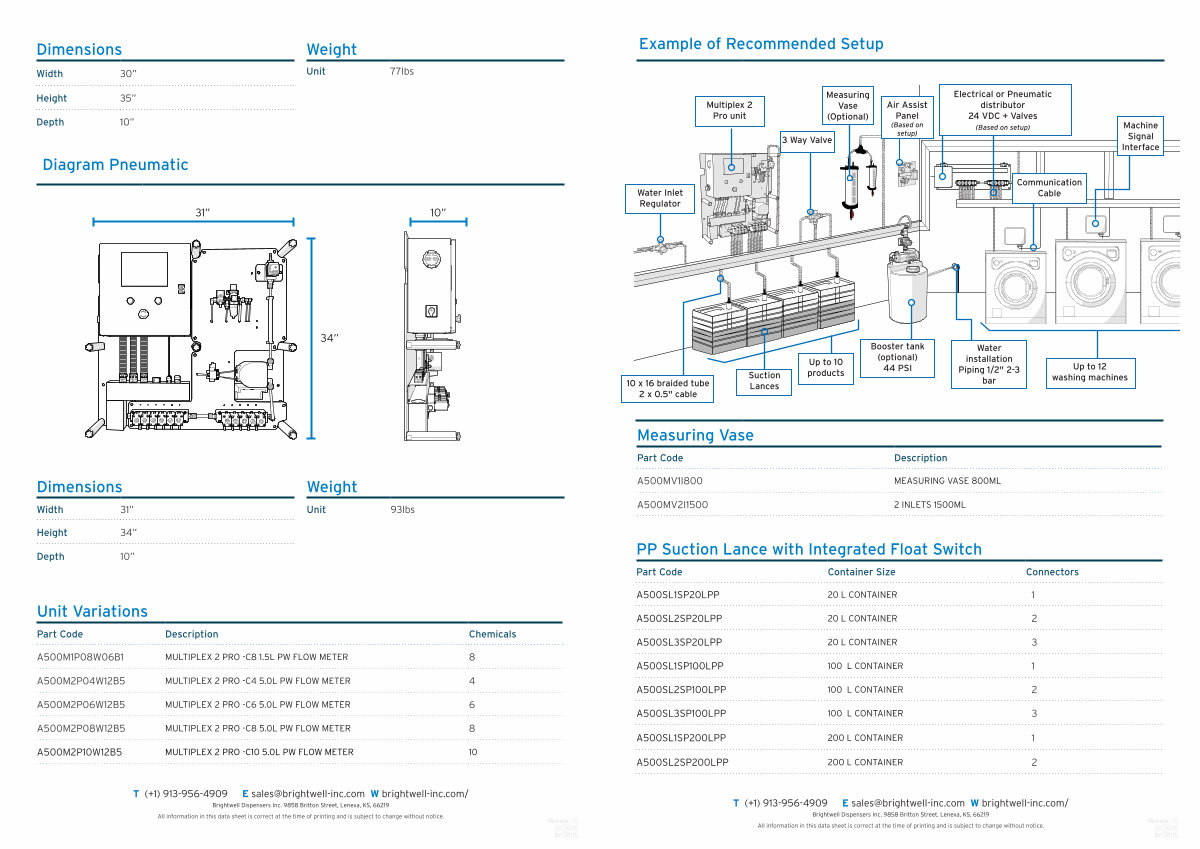

Example of Recommended Setup
Multiplex 2 Pro unit
3 Way Valve
Measuring Vase ( Optional )
Air Assist Panel
( Based on setup )
Electrical or Pneumatic distributor 24 VDC + Valves
( Based on setup )
Machine Signal Interface
Water Inlet Regulator
Communication Cable
10 x 16 braided tube 2 x 0.5 " cable
Suction Lances
Up to 10 products
Booster tank ( optional ) 44 PSI
Water installation Piping 1 / 2 " 2-3 bar
Up to 12 washing machines
Measuring Vase
Part Code A500MV1I800 A500MV2I1500
Description MEASURING VASE 800ML
2 INLETS 1500ML
PP Suction Lance with Integrated Float Switch
Part Code
Container Size
Connectors
A500SL1SP20LPP
20 L CONTAINER
1
A500SL2SP20LPP
20 L CONTAINER
2
A500SL3SP20LPP
20 L CONTAINER
3
A500SL1SP100LPP
100 L CONTAINER
1
A500SL2SP100LPP
100 L CONTAINER
2
A500SL3SP100LPP
100 L CONTAINER
3
A500SL1SP200LPP
200 L CONTAINER
1
A500SL2SP200LPP
200 L CONTAINER
2
