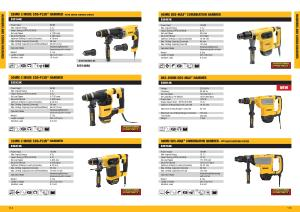

ASIA DEWALT Catalogue _R01(2021-2022) | Seite 58

NEW
HAMMERS AND CORING MACHINES
28MM 3 MODE SDS-PLUS ® HAMMER - WITH QUICK CHANGE CHUCK
D25144K
Power Input
900W
Max . Impact Energy
3.2 J
Impact Energy ( EPTA 05 / 2009 )
3.0 J
No Load Speed
0-1450 rpm
Blows Per Minute
0-5450 bpm
Optimum Drilling Capacity [ Concrete ]
4-18 mm
Max . Drilling Capacity [ Concrete ]
28 mm
Max . Drilling Capacity [ Core bit / Wood / Metal ]
65 / 30 / 13 mm
Operation Mode
Hammering / Rotation /
Hammering with rotation
Weight
3.1 kg
Length x Height
360 x 210 mm
Vibration Level
14.9 m / s ²
ALSO AVAILABLE AS :
40MM SDS-MAX ® COMBINATION HAMMER
D25481K
Power Input
1050W
Max . Impact Energy
7.3 J
Impact Energy ( EPTA 05 / 2009 )
6.1 J
No Load Speed
540 rpm
Blows Per Minute
3150 bpm
Optimum Drilling Capacity [ Concrete ]
16-30 mm
Max . Drilling Capacity [ Concrete ]
40 mm
Max . Drilling Capacity [ Core bit ]
100 mm
Operation Mode
Hammering / Rotation /
Hammering with rotation
Weight
5.9 kg
Length x Height
453 x 263 mm
Vibration Level
9.4 m / s ²
HAMMERS AND CORING MACHINES
D25144KA
30MM 3 MODE SDS-PLUS ® HAMMER
D25333K
Power Input
950W
Max . Impact Energy
4.2 J
Impact Energy ( EPTA 05 / 2009 )
3.5 J
No Load Speed
0-1150 rpm
Blows Per Minute
0-5200 bpm
Optimum Drilling Capacity [ Concrete ]
6-20 mm
Max . Drilling Capacity [ Concrete ]
30 mm
Max . Drilling Capacity [ Core bit / Wood / Metal ]
65 / 30 / 13 mm
Operation Mode
Hammering / Rotation /
Hammering with rotation
Weight
3.7 kg
Length x Height
355 x 250 mm
Vibration Level
6.9 m / s ²
6KG 45MM SDS-MAX ® HAMMER
D25614K
Voltage
220-240 V
Frequency
50-60 Hz
No Load Speed
190-380 min-1
No-Load Beats Per Minute
1450-2900 bpm
Power Input
1350 W
Single Impact Energy ( EPTA 05 / 2009 )
10.5 J
Optimum Drilling Range Into Concrete
16-32 mm
Maximum Drilling Range In Concrete
45 mm
Maximum Core Drilling Range In Concrete
125 mm
Tool Holdler
sds max
Weight
7.8 Kg
NEW
32MM 3 MODE SDS-PLUS ® HAMMER
D25413K
Power Input
1000W
Max . Impact Energy
4.9 J
Impact Energy ( EPTA 05 / 2009 )
4.2 J
No Load Speed
0-820 rpm
Blows Per Minute
0-4700 bpm
Optimum Drilling Capacity [ Concrete ]
6-22 mm
Max . Drilling Capacity [ Concrete ]
32 mm
Max . Drilling Capacity [ Core bit / Wood / Metal ]
100 / 32 / 13 mm
Operation Mode
Hammering / Rotation /
Hammering with rotation
Weight
4.2 kg
Length x Height
370 x 250 mm
Vibration Level
8.2 m / s ²
48MM SDS-MAX ® COMBINATION HAMMER - WITH ANTI ROTATION SYSTEM D25733K
Power Output
1600W
Max . Impact Energy
15.7 J
Impact Energy ( EPTA 05 / 2009 )
13.3 J
No Load Speed
177-355 rpm
Blows Per Minute
1350-2707 bpm
Optimum Drilling Capacity [ Concrete ]
24-42 mm
Max . Drilling Capacity [ Concrete ]
48 mm
Max . Drilling Capacity [ Core bit ]
125 mm
Operation Mode
Hammering / Hammering with rotation
Weight
9.2 kg
Length x Height
544 x 292 mm
Vibration Level
9.6 m / s ²
114 115
