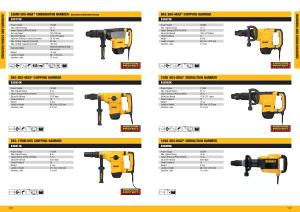

HAMMERS AND CORING MACHINES |
52MM SDS-MAX ® COMBINATION HAMMER - WITH ANTI ROTATION SYSTEM
D25773K
Power Output |
1700W |
Max . Impact Energy |
22.7 J |
Impact Energy ( EPTA 05 / 2009 ) |
19.4 J |
No Load Speed |
145-290 rpm |
Blows Per Minute |
1105-2210 bpm |
Optimum Drilling Capacity [ Concrete ] |
28-45 mm |
Max . Drilling Capacity [ Concrete ] |
52 mm |
Max . Drilling Capacity [ Core bit ] |
135 mm |
Operation Mode |
Hammering / Hammering with rotation |
Weight |
10.5 kg |
Length x Height |
591 x 292 mm |
Vibration Level |
12.4 m / s ² |
|
|
|
8KG SDS-MAX ® CHIPPING HAMMER
D25872K
Power Output |
1600W |
Max . Impact Energy |
15.7 J |
Impact Energy ( EPTA 05 / 2009 ) |
13.3 J |
Blows Per Minute |
1350-2708 bpm |
Chisel Positions |
12 |
Weight |
8.6 kg |
Length x Height |
544 mm x 292 mm |
Vibration Level |
9.7 m / s ² |
|
HAMMERS AND CORING MACHINES |
|
5KG SDS-MAX ® CHIPPING HAMMER |
10KG SDS-MAX ® DEMOLITION HAMMER |
|
|
D25810K |
D25892K |
|
|
Power Output |
1050W |
Max . Impact Energy |
8.5 J |
Impact Energy ( EPTA 05 / 2009 ) |
7.1 J |
Blows Per Minute |
3150 bpm |
Chisel Positions |
18 |
Weight |
5.6 kg |
Length x Height |
462 mm x 263 mm |
Vibration Level |
8.5 m / s ² |
|
Power Output |
1700W |
Max . Impact Energy |
22.7 J |
Impact Energy ( EPTA 05 / 2009 ) |
19.4 J |
Blows Per Minute |
1105-2211 bpm |
Chisel Positions |
12 |
Weight |
10 kg |
Length x Height |
591 mm x 292 mm |
Vibration Level |
13.5 m / s ² |
|
|
|
5KG 17MM HEX CHIPPING HAMMER |
|
|
10KG SDS-MAX ® DEMOLITION HAMMER |
|
|
D25811K |
D25899K |
|
|
Power Output |
1100W |
Max . Impact Energy |
8.5 J |
Impact Energy ( EPTA 05 / 2009 ) |
7.1 J |
Blows Per Minute |
3150 bpm |
Chisel Positions |
18 |
Weight |
5.7 kg |
Length x Height |
477 mm x 263 mm |
Vibration Level |
8.5 m / s ² |
|
Power Output |
1500W |
Max . Impact Energy |
19.5 J |
Impact Energy ( EPTA 05 / 2009 ) |
17.9 J |
Blows Per Minute |
2040 bpm |
Chisel Positions |
12 |
Weight |
9.5 kg |
Length x Height |
650 mm x 250 mm |
Vibration Level |
12.0 m / s ² |
|
|
