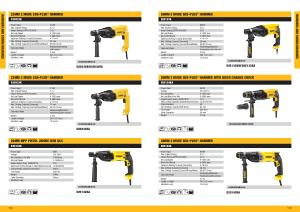

ASIA DEWALT Catalogue _R01(2021-2022) | Page 57

HAMMERS AND CORING MACHINES
22MM 2 MODE SDS-PLUS ® HAMMER
D25032K
Power Input
710W
Max . Impact Energy
2.1 J
Impact Energy ( EPTA 05 / 2009 )
2.0 J
No Load Speed
0-1550 rpm
Blows Per Minute
0-5680 bpm
Optimum Drilling Capacity [ Concrete ]
4-12 mm
Max . Drilling Capacity [ Concrete ]
22 mm
Max . Drilling Capacity [ Core bit / Wood / Metal ]
50 / 30 / 13 mm
Operation Mode
Rotation / Hammering with rotation
Weight
2.5 kg
Length x Height
330 x 210 mm
Vibration Level
13.6 m / s ²
ALSO AVAILABLE AS :
D25032B / D25032KA
26MM 3 MODE SDS-PLUS ® HAMMER
D25133K
Power Input
800W
Max . Impact Energy
2.8 J
Impact Energy ( EPTA 05 / 2009 )
2.6 J
No Load Speed
0-1500 rpm
Blows Per Minute
0-5500 bpm
Optimum Drilling Capacity [ Concrete ]
4-14 mm
Max . Drilling Capacity [ Concrete ]
26 mm
Max . Drilling Capacity [ Core bit / Wood / Metal ]
50 / 30 / 13 mm
Operation Mode
Hammering / Rotation /
Hammering with rotation
Weight
2.6 kg
Length x Height
335 x 210 mm
Vibration Level
15.4 m / s ²
ALSO AVAILABLE AS :
D25133KW / D25133KA
HAMMERS AND CORING MACHINES
22MM 3 MODE SDS-PLUS ® HAMMER
D25033K
26MM 3 MODE SDS-PLUS ® HAMMER WITH QUICK CHANGE CHUCK
D25134KA
Power Input
710W
Max . Impact Energy
2.1 J
Impact Energy ( EPTA 05 / 2009 )
2.0 J
No Load Speed
0-1550 rpm
Blows Per Minute
0-5680 bpm
Optimum Drilling Capacity [ Concrete ]
4-12 mm
Max . Drilling Capacity [ Concrete ]
22 mm
Max . Drilling Capacity [ Core bit / Wood / Metal ]
50 / 30 / 13 mm
Operation Mode
Hammering / Rotation /
Hammering with rotation
Weight
2.5 kg
Length x Height
330 x 210 mm
Vibration Level
13.6 m / s ²
ALSO AVAILABLE AS :
Power Input
800W
Voltage
220-240 V
No Load Speed
0-1500 rpm
No Load Beats Per Min
0-5540 bpm
Single Impact Energy ( NON EPTA )
3.0 J
MAX . Drilling Capacity [ Steel / Wood / Concrete ] 13 / 30 / 26 mm
Chisle Positions
48
Core Drilling Capacity [ Soft Brick ]
65 mm
Tool Holder
SDS Plus
Collar Diameter
54 mm
Weight
3.0 Kg
QCC AND ACCESSORIES EXTRA
D25033KA
26MM MPP PISTOL 2MODE NON QCC
28MM 3 MODE SDS-PLUS ® HAMMER
D25132K
D25143K
Power Input
800V
Voltage
220-240V
No-Load Beats Per Min
0-5500rmp
No Load Speed
0-1500min-1
Single Impact Energy ( NON EPTA )
2.9J
Maximum Drilling Range In Steel / Wood / Concrete 13 / 30 / 26mm
Core Drilling Capacity In Soft Brick
50mm
Tool Holder
SDS Plus
Weight
2.6Kg
Collar Diameter
43mm
Vibration Level
ALSO AVAILABLE AS :
Power Input
900W
Max . Impact Energy
3.2 J
Impact Energy ( EPTA 05 / 2009 )
3.0 J
No Load Speed
0-1450 rpm
Blows Per Minute
0-5350 bpm
Optimum Drilling Capacity [ Concrete ]
4-18 mm
Max . Drilling Capacity [ Concrete ]
28 mm
Max . Drilling Capacity [ Core bit / Wood / Metal ]
65 / 30 / 13 mm
Operation Mode
Hammering / Rotation /
Hammering with rotation
Weight
3.0 kg
Length x Height
340 x 210 mm
Vibration Level
14.9 m / s ²
ALSO AVAILABLE AS :
D25132KA
D25143KA
112 113
