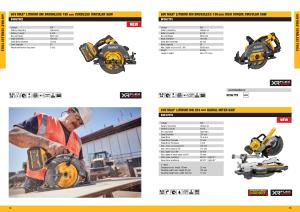

ASIA DEWALT Catalogue _R01(2021-2022) | Page 32

NEW
60V MAX * CORDLESS TOOLS
60V MAX * LITHIUM ION BRUSHLESS 185mm CORDLESS CIRCULAR SAW
DCS578X2
Voltage
60V
Battery Chemistry
Lithium Ion
Battery Capacity
6.0 Ah
No Load Speed
5800 rpm
Blade Diameter
184 mm
Blade Bore Diameter
19 mm
Bevel Capacity
57 °
Weight ( without battery pack )
3.6 kg
NEW
60V MAX * LITHIUM ION BRUSHLESS 190mm HIGH TORQUE CIRCULAR SAW
DCS577T2
Voltage
60V
Battery Chemistry
Lithium Ion
Battery Capacity
6.0 Ah
No Load Speed
5800 rpm
Blade Diameter
190 mm
Blade Bore Diameter
30 mm
Bevel Capacity
53 °
Max . Depth of Cut at 45 º / 90 º
50 / 65 mm
Weight
6.05 kg
Length x Height
355 x 210 mm
60V MAX * CORDLESS TOOLS
ALSO AVAILABLE AS :
AH
DCS577N
60V MAX * LITHIUM ION 250mm RADIAL MITER SAW
DCS727T2
Voltage
60V
Battery Chemistry
Lithium Ion
Battery Capacity
6.0 Ah
No Load Speed
4300 rpm
Blade Diameter
254 mm
Blade Bore
25.4 mm
Blade Bore Diameter
30 mm
Blade Bore Thickness
3 mm
Max . cross-cut capacity 90 °
305 mm
Max . mitre capacity 45 °
215 mm
Max . depth of cut 90 °
90 mm
Max . depty of bevel cross-cut 45 °
50 mm
Mitre ( max . positions )
left 50 ° / right 50 °
Bevel ( max . positions )
left 49 ° / right 49 °
NEW
0 ° Mitre Baseboard max . height 150mm Resulting width max . height 90 mm Resulting height max . width 305 mm
28 mm 290 mm 77 mm
AH
64 65
