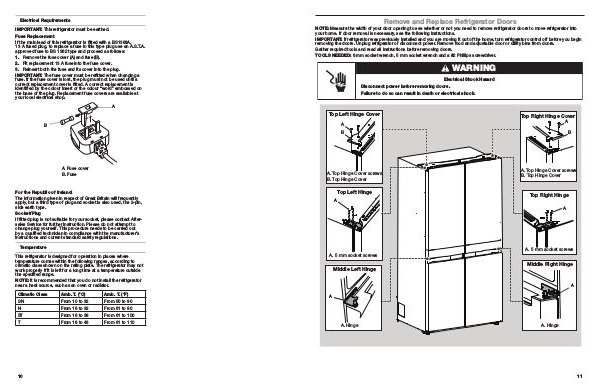

Remove and Replace Refrigerator Doors
NOTE: Measure the width of your door opening to see whether or not you need to remove refrigerator doors to move refrigerator into
your home. If door removal is necessary, see the following instructions.
IMPORTANT: If refrigerator was previously installed and you are moving it out of the home, turn refrigerator control off before you begin
removing the doors. Unplug refrigerator or disconnect power. Remove food and adjustable door or utility bins from doors.
Gather required tools and read all instructions before removing doors.
TOOLS NEEDED: 6 mm socket wrench, 5 mm socket wrench and a #2 Phillips screwdriver.
WARNING
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.
Top Left Hinge Cover
Top Right Hinge Cover
A
A
B
B
A. Top Hinge Cover screws
B. Top Hinge Cover
Top Left Hinge
A. Top Hinge Cover screws
B. Top Hinge Cover
Top Right Hinge
A
A
A. 5 mm socket screws
A. 5 mm socket screws
Middle Left Hinge
Middle Right Hinge
A
A
A. Hinge
A. Hinge
11
