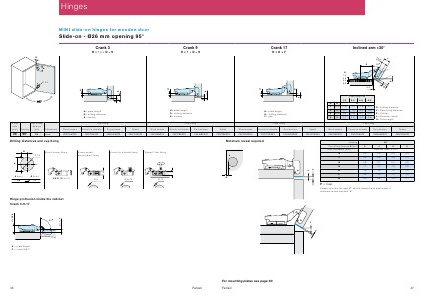

A. Ferrari SpA ENG Anyway Clip and Slide-On Hinges | Page 49

Crank 17
H = D + F
Inclined arm + 30 °
11.5
T
X
30
H
D
H
1.5 3.0 4.5 6.0
0.5
L
D
S
H = plate height D = drilling distance F = gap
Cup fixing
F
Base height H
1.5
3.0
4.5
6.0
D
X
S
3
36.5
-0.8
-2.3
-3.8
-5.3
4
36
0.0
-1.5
-3.0
-4.5
5
35.5
0.9
-0.6
-2.1
-3.6
6
35
1.7
0.2
-1.3
-2.8
Cup fixing
D = Drilling distance X = Plate fixing distance S = Overlay L = Minimum reveal H = Plate height
Speed Wood screws Knock-in dowels Euroscrews Speed Wood screws Knock-in dowels Euroscrews Speed C95412BMGZG C95120CMGMG C95121CMGMG C95064CMGMG C95412CMGMG C95120DMGZG C95121DMGZG C95064DMGZG C95412DMGZG
Minimum reveal required
Opening 95 °
Cup drilling distance D [ mm ] 3 4 5 6
Door thickness T [ mm ] Minimum reveal L [ mm ]
16 0.3 0.3 0.3 0.3
17 0.5 0.5 0.5 0.4
18 0.8 0.7 0.7 0.6
19 1.1 1.0 1.0 0.9
L
F
20 1.5 1.4 1.3 1.2
D
21 2.2 2.0 1.7 1.6
22 3.0 2.6 2.3 2.1
F = Gap
Please note that the gap“ F” should always be at least equal to minimum reveal required“ L”
F
L
For mounting plates see page 60
Ferrari 47
