Hinges
D

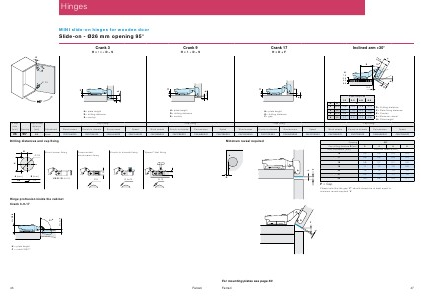

MINI slide-on hinges for wooden door
Slide-on- Ø26 mm opening 95 °
Crank 3 H = 14 + D – S
Crank 9 H = 8 + D – S
A
Ø 26
Ø cup hole [ mm ] Opening
Cup drilling distance
[ mm ] Adjustment
Cup fixing
Cup fixing
Wood screws Knock-in dowels Euroscrews Speed Wood screws Knock-in dowels Euroscrews
26 95 ° 38 Screw C95120HMGZG C95121HMGZG C95064HMGZG C95412HMGZG C95120BMGZG C95121BMGZG C95064BMGZG
B Ø 26
Wood screw fixing |
Premounted |
Knock-in dowels fixing |
" Speed " fast fixing |
|
euroscrews fixing |
|
|
H = plate height D = drilling distance S = overlay
H = plate height D = drilling distance S = overlay
Drilling distances and cup fixing
|
|
|
10 10 |
|
A [ mm ]
38
|
B [ mm ]
7.5
|
V501 / G 4x16 |
Ø 8 Ø 5x10
Ø 10
|
Hinge protrusion inside the cabinet Crank 3-9-17
H + 13.5
95
H + C-1
H = plate height C = crank 3 / 9 / 17
46 Ferrari
