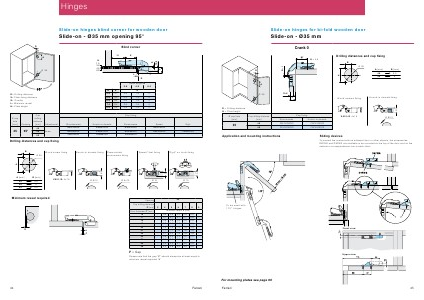

Slide-on hinges for bi-fold wooden door
Slide-on- Ø35 mm
Crank 0
H = 4,5 |
Drilling distances and cup fixing
B
|
D |
D = 3 |
A |
Ø 35 |
A [ mm ]
45 48
|
B [ mm ]
9.5 6
|
A |
|
|
|
|
Ø 35 |
10.2 |
T |
Wood screws fixing |
Knock-in dowels fixing |
D = Drilling distance H = Plate height
10
Ø cup hole [ mm ] |
Cup drilling distance [ mm ] |
Wood screws |
Cup fixing
Knock-in dowels
|
V501 / G 4x16 |
Ø 8 / 10 |
35 |
45 |
C95730GMGZG |
C95731GMGZG |
48 |
C95732GMGZG |
C95734GMGZG |
|
Application and mounting instructions
Sliding devices
To prevent the contact with an adiacent door or other objects, the accessories D9FNG and D9PNG are available to be mounted on the top of the door and on the cabinet in correspondance one to each other.
To be used with 170 ° hinges
Front vi ew
Upper view
For mounting plates see page 60
Ferrari 45
