Hinges

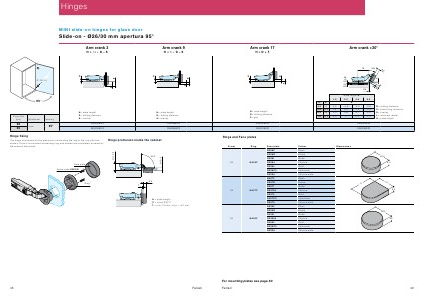

MINI slide-on hinges for glass door
Slide-on- Ø26 / 30 mm apertura 95 °
Arm crank 3
H = 14 + D – S
Arm crank 9
H = 8 + D – S
Ø cup hole |
|
|
[ mm ] |
Adjustment |
Opening |
26
Screw 95 °
H = plate height D = drilling distance S = overlay
C95315HNFZG
H = plate height D = drilling distance S = overlay
C95315BNFZG
30 C95370HNFZG C95370BNFZG
Hinge fixing
The hinge is mounted on the glass door connecting the ring to the cup with two screws. Once it is mounted connecting ring and screws are completely covered by the external face plate.
Hinge protrusion inside the cabinet
Face plate |
H + 13.5 |
95 |
H + C-2 |
Screw code V220 / G |
|
|
|
Ring T
8.5
H = plate height C = crank 3 / 9 / 17 T = min. 3.5 mm; max. = 6.0 mm
