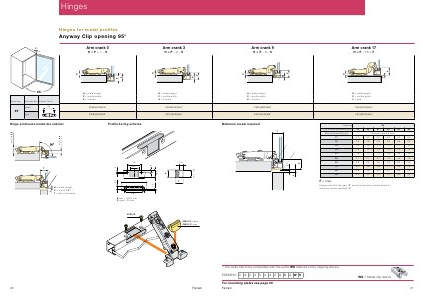

A. Ferrari SpA ENG Anyway Clip and Slide-On Hinges | Page 23

Arm crank 9
H = P – 8 – S
Arm crank 17
H = P – 16 + F
S
F
H
P
H
P
H = plate height P = profile width S = overlay
H = plate height P = profile width F = gap
C90350BZGMG * C90350CZGMG *
C91350AZGMG * C91350CZGMG *
Minimum reveal required
T
L
F P
Opening
95 °
Cup drilling distance P [ mm ]
19
20
21
22
23
24
Door thickness T [ mm ]
Minimum reveal L [ mm ]
17
0.7
0.7
0.7
0.7
0.7
0.7
18
0.9
0.9
0.9
0.9
0.9
0.9
19
1.2
1.2
1.1
1.1
1.1
1.0
20
1.5
1.4
1.4
1.4
1.3
1.3
21
1.8
1.7
1.7
1.6
1.6
1.5
22
2.1
2.1
2.0
1.9
1.9
1.9
23
2.5
2.5
2.4
2.3
2.2
2.2
24
3.0
2.9
2.8
2.7
2.6
2.5
25
3.8
3.4
3.3
3.1
3.0
2.9
26
4.6
4.2
3.8
3.6
3.5
3.4
F = Gap
Please note that the gap“ F” should always be at least equal to minimum reveal required“ L”
* The code has to be completed with the suffix WS referred to the clipping device ESEMPIO: C 9 0 3 5 0 A Z G M G W S
WS = Metal clip device
For mounting plates see page 30 Ferrari 21
