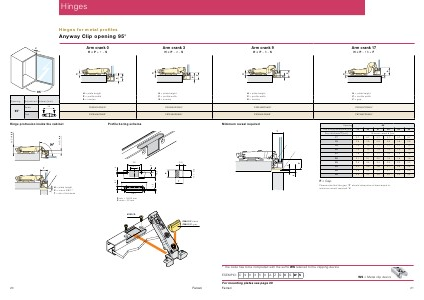

Hinges for metal profiles
Anyway Clip opening 95 °
Arm crank 0
H = P + 1 – S
Arm crank 3
H = P – 2 – S
95 °
Opening Adjustment Interax [ mm ]
H = plate height P = profile width S = overlay
H = plate height P = profile width S = overlay
95 °
Screw 36 C90350AZGMG * C90350HZGMG *
Cam C91350AZGMG * C91350HZGMG *
Hinge protrusion inside the cabinet Profile boring scheme
H + C + 13.5
H + C-4.4
T |
4 |
36 22.7 |
6 |
16.5 |
P |
( 10) |
17.1 min |
|
8.7 |
|
|
|
|
T |
|
L |
H = plate height C = crank 3 / 9 / 17 T = door thickness |
48.7 |
1.3 |
|
|
P min = 18.50 mm P max = 22 mm |
|
|
|
V233 / G |
|
CM01 / F black CM01 / C grey
