Hinges

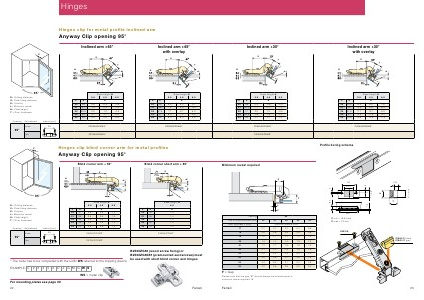

Hinges clip for metal profile inclined arm
Anyway Clip opening 95 °
P
Inclined arm + 45 ° Inclined arm + 45 ° with overlay
X X
T
T
H
S
H
S
L
L
95 °
D = Drilling distance X = Plate fixing distance S = Overlay L = Minimum reveal H = Plate height T = Door thickness
Opening Adjustment Interax [ mm ]
Base height H
3.5
4.5
6.0
P
X
S
20
38
0.6
-0.4
-1.9
21
37
1.3
0.3
-1.2
22
36.5
2.0
1.0
-0.5
23
36
2.7
1.7
0.2
24
35
3.4
2.4
0.9
Base height H
3.5
4.5
6.0
P
X
S
20
39
6.2
5.2
3.7
21
38
7.0
6.0
4.5
22
37.5
7.7
6.7
5.2
23
37
8.4
7.4
5.9
24
36
9.0
8.0
6.5
95 °
Screw 36 C90350EZGMG * C90350PZGMG *
Cam C91350EZGMG *-
P
Hinges clip blind corner arm for metal profiles
Anyway Clip opening 95 °
Blind corner arm + 90 ° Blind corner short arm + 90 °
X X
H
S T
T
S
D = Drilling distance X = Plate fixing distance S = Overlay L = Minimum reveal H = Plate height T = Door thickness
95 °
Opening Adjustment Interax [ mm ]
Base height H
3.5
4.5
6.0
P
X
S
20
37
3.5
2.5
1.0
21
36
3.5
2.5
1.0
22
35
3.5
2.5
1.0
23
34
3.5
2.5
1.0
24
33
3.5
2.5
1.0
L
Base height H 6.0
P
X
S
20
19
1.0
21
18
1.0
22
17
1.0
23
16
1.0
24
15
1.0
L
95 °
Screw 36 C90350GZGMG * C90350IZGMG *
Cam C91350GZGMG *-
* The code has to be completed with the suffix WS referred to the clipping device
B2500ZG60( wood screw fixing) or B2502ZG60B1( premounted euroscrews) must be used with short blind corner arm hinges
EXAMPLE: C 9 0 3 5 0 D Z G M G W S
For mounting plates see page 30
WS = metal clip
