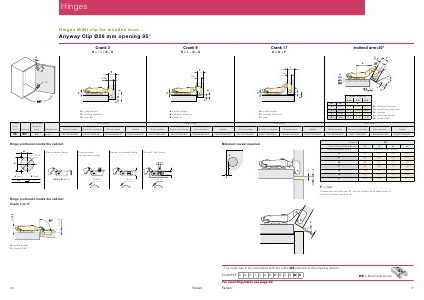

A. Ferrari SpA ENG Anyway Clip and Slide-On Hinges | Page 19

Crank 17
H = D + F
Inclined arm + 30 °
11.5
T
X
11.5 H
H
D
S
L
D
H = plate height D = drilling distance F = gap
F
Base height H
3.5
4.5
6.0
D
X
S
3
36.5
-2.8
-3.8
-5.3
4
36
-2.0
-3.0
-4.5
5
35.5
-1.1
-2.1
-3.6
6
35
-0.3
-1.3
-2.8
D = drilling distance X = plate fixing distance S = overlay L = minimum reveal H = plate height
Cup fixing
Cup fixing
Speed Wood screws Knock-in dowels Euroscrews Speed Wood screws Knock-in dowels Euroscrews Speed C90412BMGZG * C90120CMGMG * C90121CMGMG * C90064CMGMG * C90412CMGMG * C90120DMGZG * C90121DMGZG * C90064DMGZG * C90412DMGZG *
Minimum reveal required
Opening 95 ° Cup drilling distance D [ mm ] 3 4 5 6 Door thickness T [ mm ] Minimum reveal L [ mm ] 14 0.3 0.3 0.3 0.3
15 0.5 0.5 0.5 0.4
16 0.8 0.7 0.7 0.6
17 1.1 1.0 1.1 0.9
L
F
18 1.5 1.4 1.3 1.2
D
19
2.2
2.0
1.7
1.6
20
3.0
2.6
2.3
2.1
F = Gap
Please note that the gap“ F” should always be at least equal to minimum reveal required“ L”
F
L
* The code has to be completed with the suffix WS referred to the clipping device EXAMPLE: C 9 0 1 2 0 H M G Z G W S
WS = Metal clip device
For mounting plates see page 30 Ferrari 17
