Hinges
D

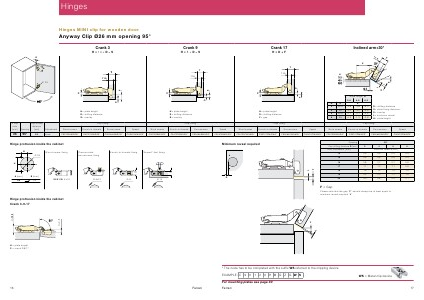

Hinges MINI clip for wooden door
Anyway Clip Ø26 mm opening 95 °
Crank 3 H = 14 + D – S
Crank 9 H = 8 + D – S
D
D
H
H
S
S
H = plate height D = drilling distance S = overlay
H = plate height D = drilling distance S = overlay
Ø cup hole [ mm ] Opening
Cup drilling distance
[ mm ] Adjustment
Cup fixing
Cup fixing
Wood screws Knock-in dowels Euroscrews Speed Wood screws Knock-in dowels Euroscrews
26 95 ° 38 Screw C90120HMGZG * C90121HMGZG * C90064HMGZG * C90412HMGZG * C90120BMGZG * C90121BMGZG * C90064BMGZG *
Hinge protrusion inside the cabinet
B Ø 26
Wood screw fixing Premounted Knock-in dowels fixing " Speed " fast fixing euroscrews fixing
|
|
|
|
10 10 |
|
A [ mm ]
38
|
B [ mm ]
7.5
|
V501 / G 4x16 |
Ø 5x10 |
Ø 8 Ø 10 |
Hinge protrusion inside the cabinet Crank 3-9-17
H + 13.5
H + C-1
H = plate height C = crank 3 / 9 / 17
16 Ferrari
