2-2. Charging
85

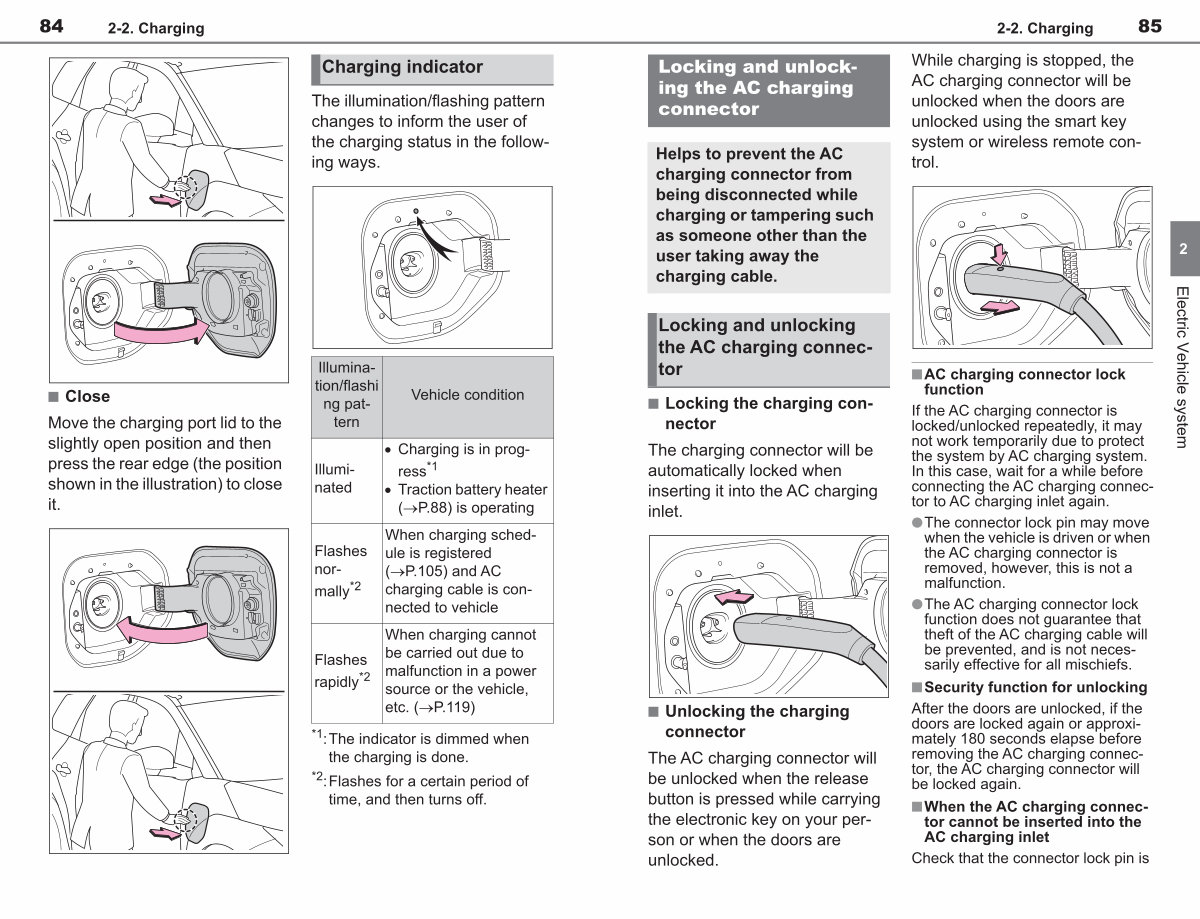

Locking and unlocking the AC charging connector
Helps to prevent the AC charging connector from being disconnected while charging or tampering such as someone other than the user taking away the charging cable.
Locking and unlocking the AC charging connector
n Locking the charging connector
The charging connector will be automatically locked when inserting it into the AC charging inlet.
n Unlocking the charging connector
The AC charging connector will be unlocked when the release button is pressed while carrying the electronic key on your person or when the doors are unlocked.
While charging is stopped, the AC charging connector will be unlocked when the doors are unlocked using the smart key system or wireless remote control.
nAC charging connector lock function
If the AC charging connector is locked / unlocked repeatedly, it may not work temporarily due to protect the system by AC charging system. In this case, wait for a while before connecting the AC charging connector to AC charging inlet again.
lThe connector lock pin may move when the vehicle is driven or when the AC charging connector is removed, however, this is not a malfunction.
lThe AC charging connector lock function does not guarantee that
theft of the AC charging cable will be prevented, and is not necessarily effective for all mischiefs.
nSecurity function for unlocking
After the doors are unlocked, if the doors are locked again or approximately 180 seconds elapse before removing the AC charging connector, the AC charging connector will be locked again.
nWhen the AC charging connector cannot be inserted into the AC charging inlet
Check that the connector lock pin is
2
Electric Vehicle system
