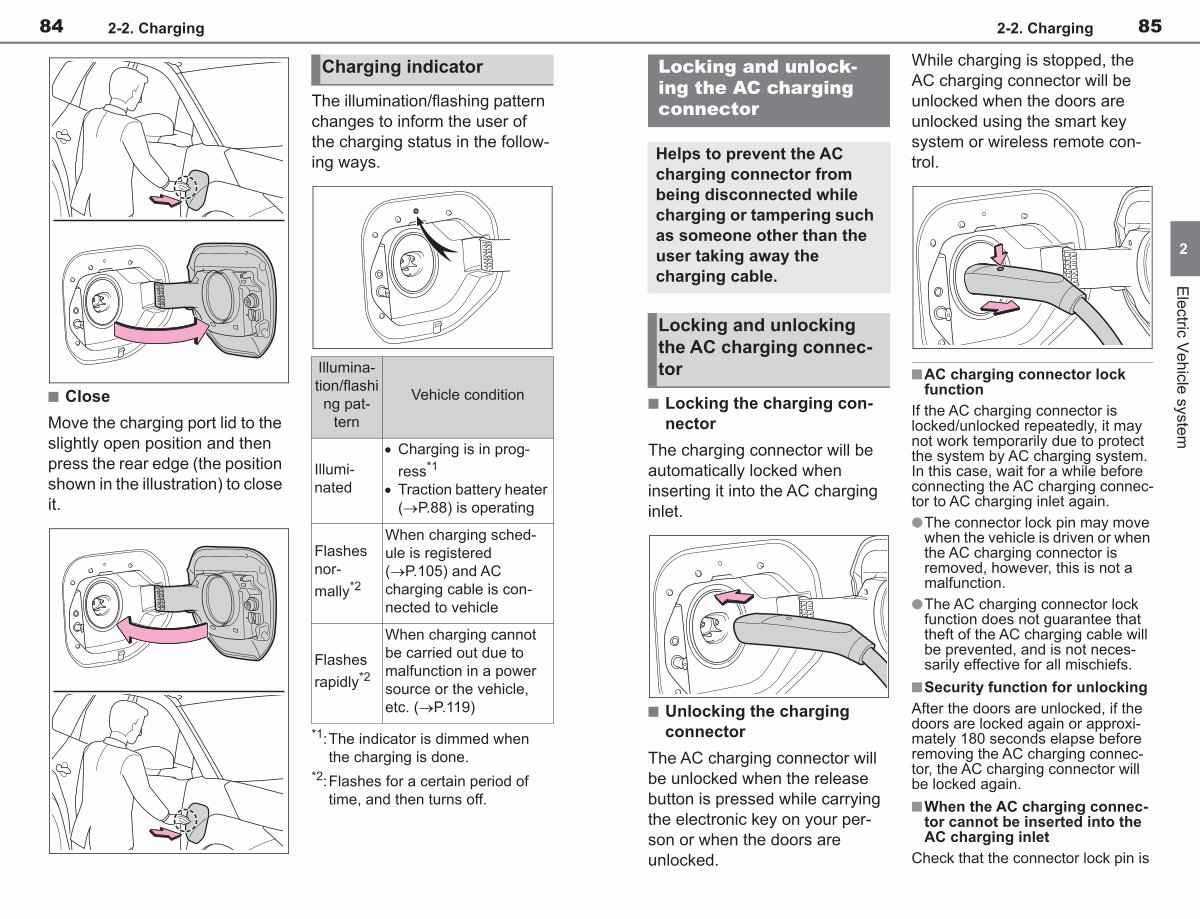

84 2-2. Charging
Charging indicator
The illumination / flashing pattern changes to inform the user of the charging status in the following ways. n Close
Move the charging port lid to the slightly open position and then press the rear edge( the position shown in the illustration) to close it.
Illumination / flashi ng pattern
Illuminated
Flashes normally * 2
Flashes rapidly * 2
Vehicle condition
� Charging is in progress * 1
� Traction battery heater( �P. 88) is operating
When charging schedule is registered( �P. 105) and AC charging cable is connected to vehicle
When charging cannot be carried out due to malfunction in a power source or the vehicle, etc.( �P. 119)
* 1: The indicator is dimmed when
the charging is done.
* 2: Flashes for a certain period of
time, and then turns off.
