8-2. Steps to take in an emergency
625

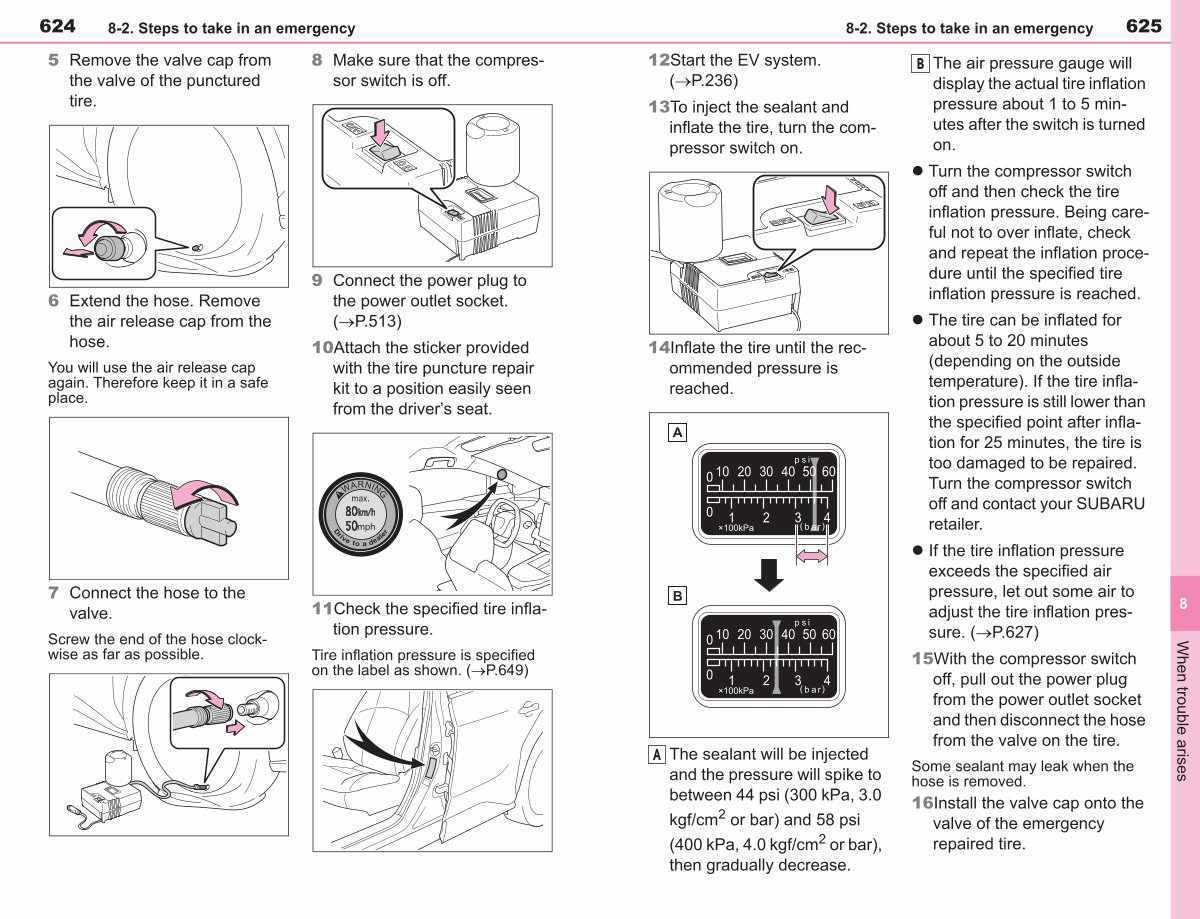

12Start the EV system.( �P. 236)
13To inject the sealant and inflate the tire, turn the compressor switch on.
14Inflate the tire until the recommended pressure is reached.
A
The sealant will be injected and the pressure will spike to between 44 psi( 300 kPa, 3.0
kgf / cm 2 or bar) and 58 psi
( 400 kPa, 4.0 kgf / cm 2 or bar), then gradually decrease.
B The air pressure gauge will display the actual tire inflation pressure about 1 to 5 minutes after the switch is turned on.
• Turn the compressor switch off and then check the tire inflation pressure. Being careful not to over inflate, check and repeat the inflation procedure until the specified tire inflation pressure is reached.
• The tire can be inflated for about 5 to 20 minutes( depending on the outside temperature). If the tire inflation pressure is still lower than the specified point after inflation for 25 minutes, the tire is too damaged to be repaired. Turn the compressor switch off and contact your SUBARU retailer.
• If the tire inflation pressure exceeds the specified air pressure, let out some air to adjust the tire inflation pressure.( �P. 627)
15With the compressor switch off, pull out the power plug from the power outlet socket and then disconnect the hose from the valve on the tire.
Some sealant may leak when the hose is removed.
16Install the valve cap onto the valve of the emergency repaired tire.
8
When trouble arises
