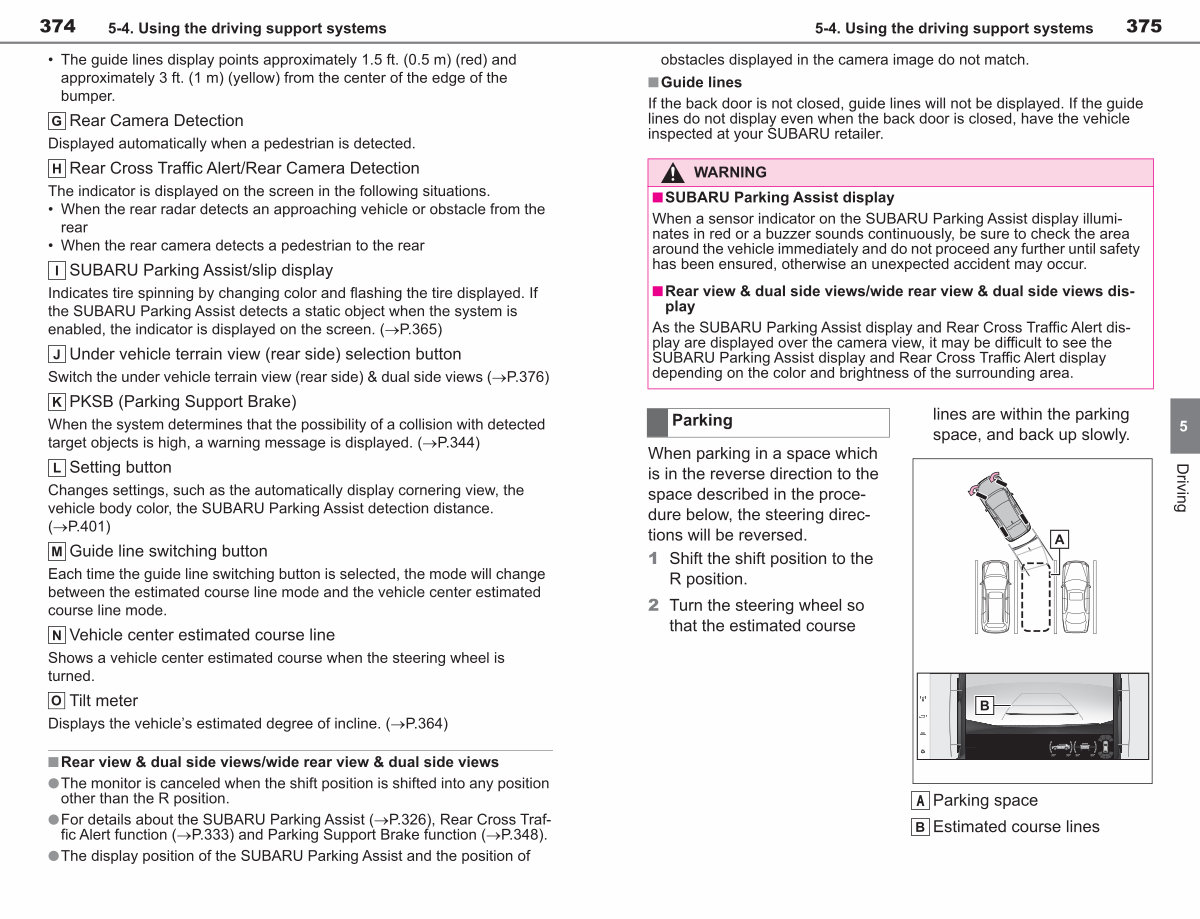

374 5-4. Using the driving support systems
• The guide lines display points approximately 1.5 ft.( 0.5 m)( red) and approximately 3 ft.( 1 m)( yellow) from the center of the edge of the bumper.
Rear Camera Detection Displayed automatically when a pedestrian is detected.
Rear Cross Traffic Alert / Rear Camera Detection
The indicator is displayed on the screen in the following situations.
• When the rear radar detects an approaching vehicle or obstacle from the rear
• When the rear camera detects a pedestrian to the rear
SUBARU Parking Assist / slip display
Indicates tire spinning by changing color and flashing the tire displayed. If the SUBARU Parking Assist detects a static object when the system is enabled, the indicator is displayed on the screen.( �P. 365)
Under vehicle terrain view( rear side) selection button Switch the under vehicle terrain view( rear side) & dual side views( �P. 376)
PKSB( Parking Support Brake)
When the system determines that the possibility of a collision with detected target objects is high, a warning message is displayed.( �P. 344)
Setting button
Changes settings, such as the automatically display cornering view, the vehicle body color, the SUBARU Parking Assist detection distance.( �P. 401)
Guide line switching button
Each time the guide line switching button is selected, the mode will change between the estimated course line mode and the vehicle center estimated course line mode.
Vehicle center estimated course line
Shows a vehicle center estimated course when the steering wheel is turned.
Tilt meter Displays the vehicle’ s estimated degree of incline.( �P. 364)
n Rear view & dual side views / wide rear view & dual side views
lThe monitor is canceled when the shift position is shifted into any position other than the R position.
lFor details about the SUBARU Parking Assist( �P. 326), Rear Cross Traffic Alert function( �P. 333) and Parking Support Brake function( �P. 348).
lThe display position of the SUBARU Parking Assist and the position of
