5-4. Using the driving support systems
373

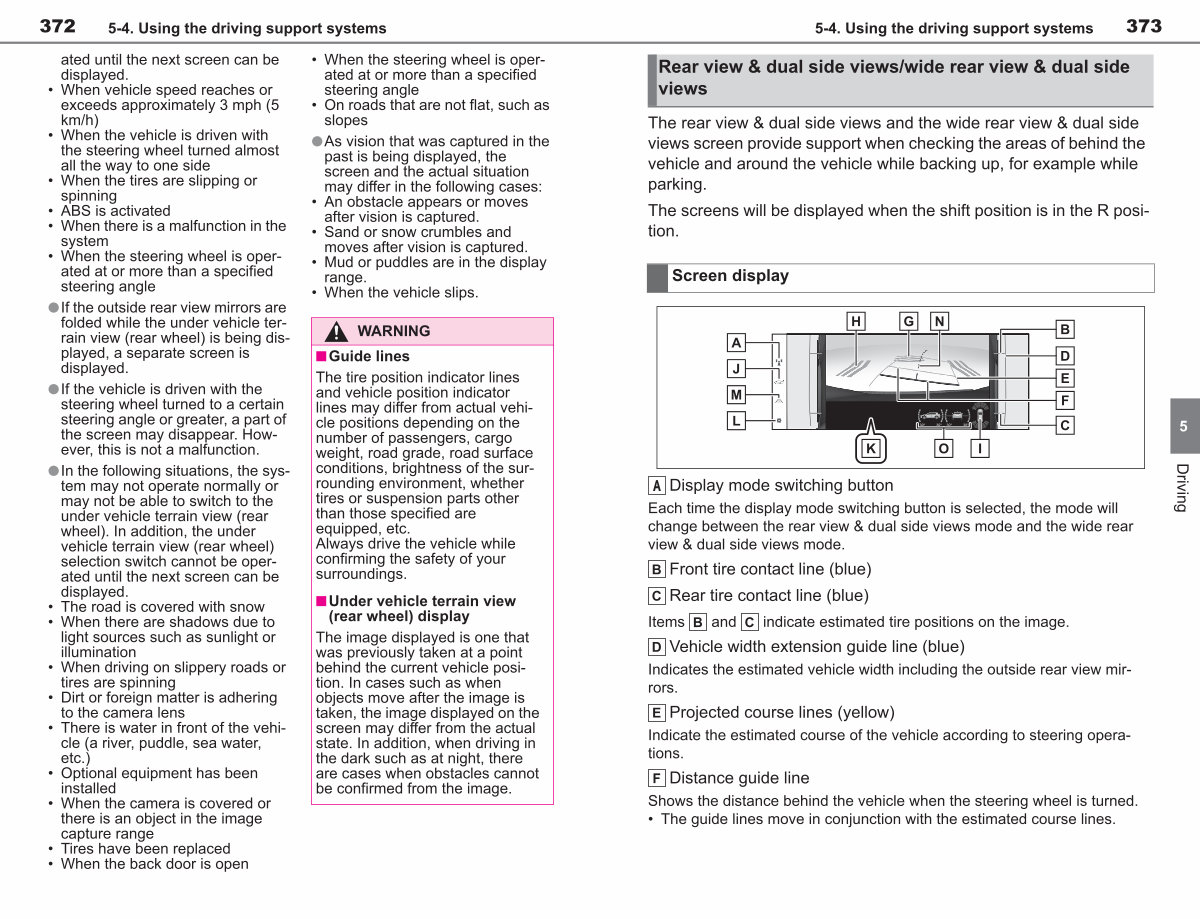

Rear view & dual side views / wide rear view & dual side views
The rear view & dual side views and the wide rear view & dual side views screen provide support when checking the areas of behind the vehicle and around the vehicle while backing up, for example while parking.
The screens will be displayed when the shift position is in the R position.
Screen display
5
A Display mode switching button
Each time the display mode switching button is selected, the mode will change between the rear view & dual side views mode and the wide rear view & dual side views mode.
Front tire contact line( blue) Rear tire contact line( blue)
Items and indicate estimated tire positions on the image. Vehicle width extension guide line( blue)
Indicates the estimated vehicle width including the outside rear view mirrors.
Projected course lines( yellow)
Indicate the estimated course of the vehicle according to steering operations.
Distance guide line
Shows the distance behind the vehicle when the steering wheel is turned.
• The guide lines move in conjunction with the estimated course lines.
Driving
