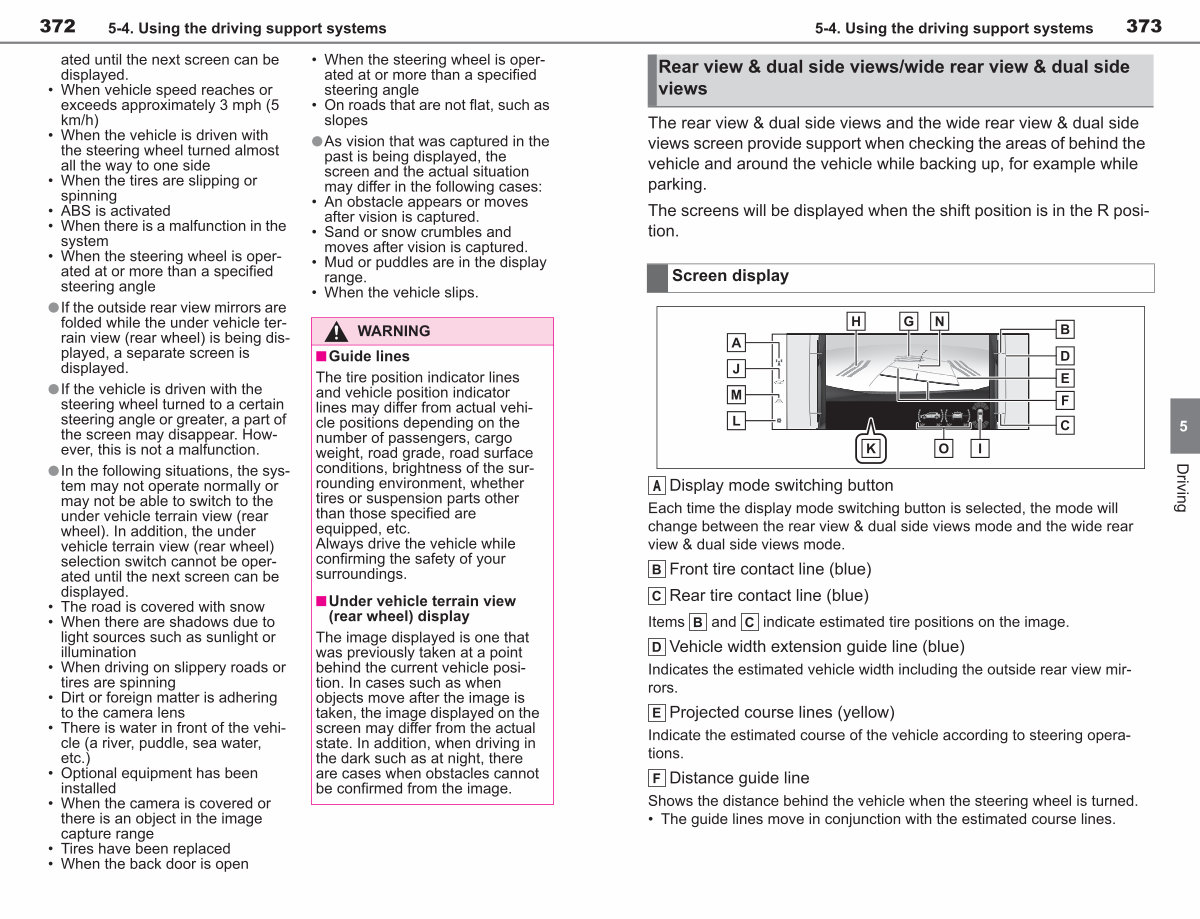

372 5-4. Using the driving support systems
ated until the next screen can be displayed.
• When vehicle speed reaches or exceeds approximately 3 mph( 5 km / h)
• When the vehicle is driven with the steering wheel turned almost
all the way to one side
• When the tires are slipping or
spinning
• ABS is activated
• When there is a malfunction in the
system
• When the steering wheel is operated at or more than a specified
steering angle
lIf the outside rear view mirrors are folded while the under vehicle terrain view( rear wheel) is being displayed, a separate screen is
displayed.
lIf the vehicle is driven with the steering wheel turned to a certain
steering angle or greater, a part of the screen may disappear. However, this is not a malfunction.
lIn the following situations, the system may not operate normally or
may not be able to switch to the under vehicle terrain view( rear
wheel). In addition, the under vehicle terrain view( rear wheel) selection switch cannot be operated until the next screen can be displayed.
• The road is covered with snow
• When there are shadows due to light sources such as sunlight or illumination
• When driving on slippery roads or tires are spinning
• Dirt or foreign matter is adhering
to the camera lens
• There is water in front of the vehicle( a river, puddle, sea water, etc.)
• Optional equipment has been installed
• When the camera is covered or there is an object in the image
capture range
• Tires have been replaced
• When the back door is open
• When the steering wheel is operated at or more than a specified steering angle
• On roads that are not flat, such as slopes
lAs vision that was captured in the
past is being displayed, the screen and the actual situation
may differ in the following cases:
• An obstacle appears or moves after vision is captured.
• Sand or snow crumbles and
moves after vision is captured.
• Mud or puddles are in the display
range.
• When the vehicle slips.
WARNING n Guide lines
The tire position indicator lines and vehicle position indicator lines may differ from actual vehicle positions depending on the number of passengers, cargo weight, road grade, road surface conditions, brightness of the surrounding environment, whether tires or suspension parts other than those specified are equipped, etc. Always drive the vehicle while
confirming the safety of your surroundings.
n Under vehicle terrain view( rear wheel) display
The image displayed is one that was previously taken at a point
behind the current vehicle position. In cases such as when objects move after the image is
taken, the image displayed on the screen may differ from the actual state. In addition, when driving in the dark such as at night, there are cases when obstacles cannot be confirmed from the image.
