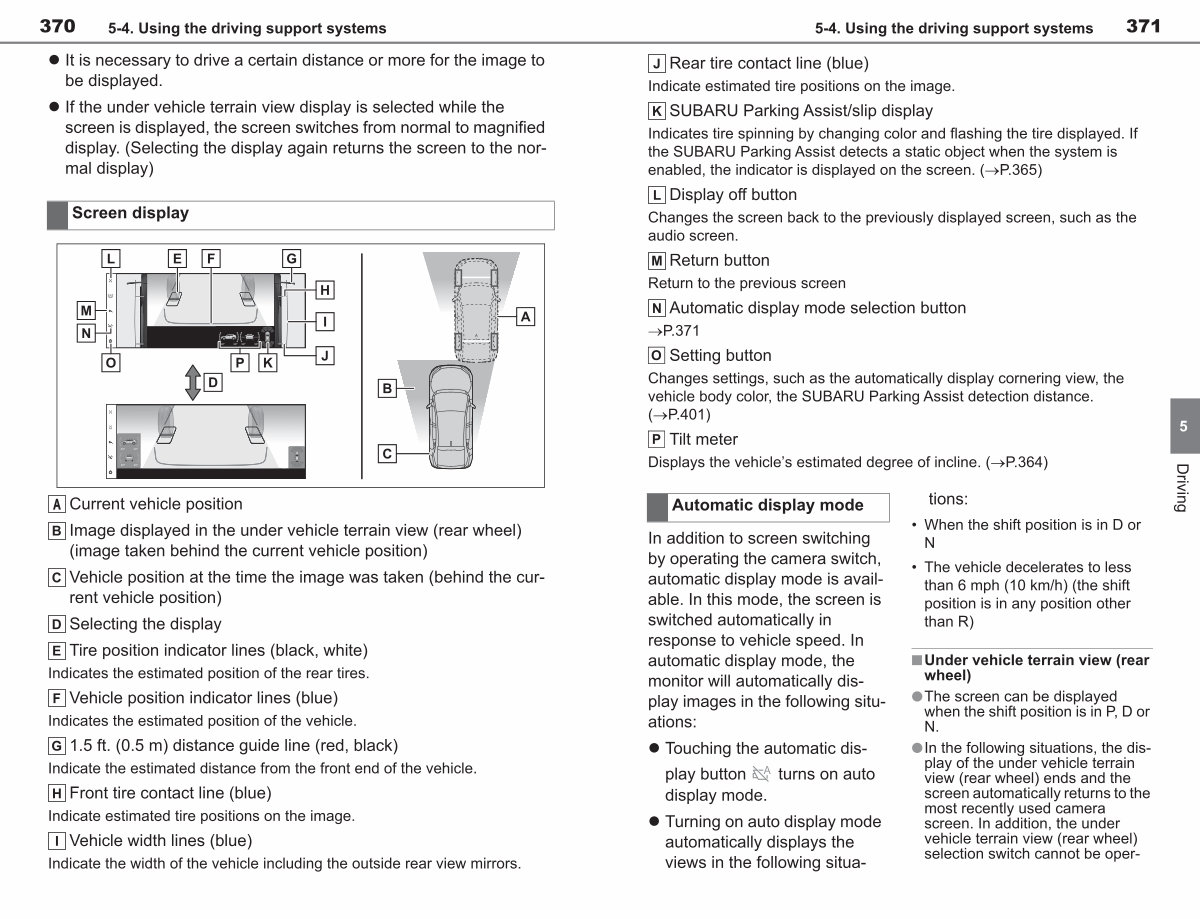

5-4. Using the driving support systems
371
Rear tire contact line( blue) Indicate estimated tire positions on the image. SUBARU Parking Assist / slip display
Indicates tire spinning by changing color and flashing the tire displayed. If the SUBARU Parking Assist detects a static object when the system is enabled, the indicator is displayed on the screen.( �P. 365)
Display off button
Changes the screen back to the previously displayed screen, such as the audio screen.
Return button Return to the previous screen
Automatic display mode selection button �P. 371
Setting button
Changes settings, such as the automatically display cornering view, the vehicle body color, the SUBARU Parking Assist detection distance.( �P. 401)
Tilt meter Displays the vehicle’ s estimated degree of incline.( �P. 364)
Automatic display mode
In addition to screen switching by operating the camera switch, automatic display mode is available. In this mode, the screen is switched automatically in response to vehicle speed. In automatic display mode, the monitor will automatically display images in the following situations:
• Touching the automatic display button turns on auto display mode.
• Turning on auto display mode automatically displays the views in the following situations:
• When the shift position is in D or N
• The vehicle decelerates to less than 6 mph( 10 km / h)( the shift position is in any position other than R)
nUnder vehicle terrain view( rear wheel)
lThe screen can be displayed when the shift position is in P, D or N.
lIn the following situations, the display of the under vehicle terrain view( rear wheel) ends and the
screen automatically returns to the most recently used camera screen. In addition, the under vehicle terrain view( rear wheel) selection switch cannot be oper-
5
Driving
