370 5-4. Using the driving support systems
• It is necessary to drive a certain distance or more for the image to be displayed.
• If the under vehicle terrain view display is selected while the screen is displayed, the screen switches from normal to magnified display.( Selecting the display again returns the screen to the normal display)

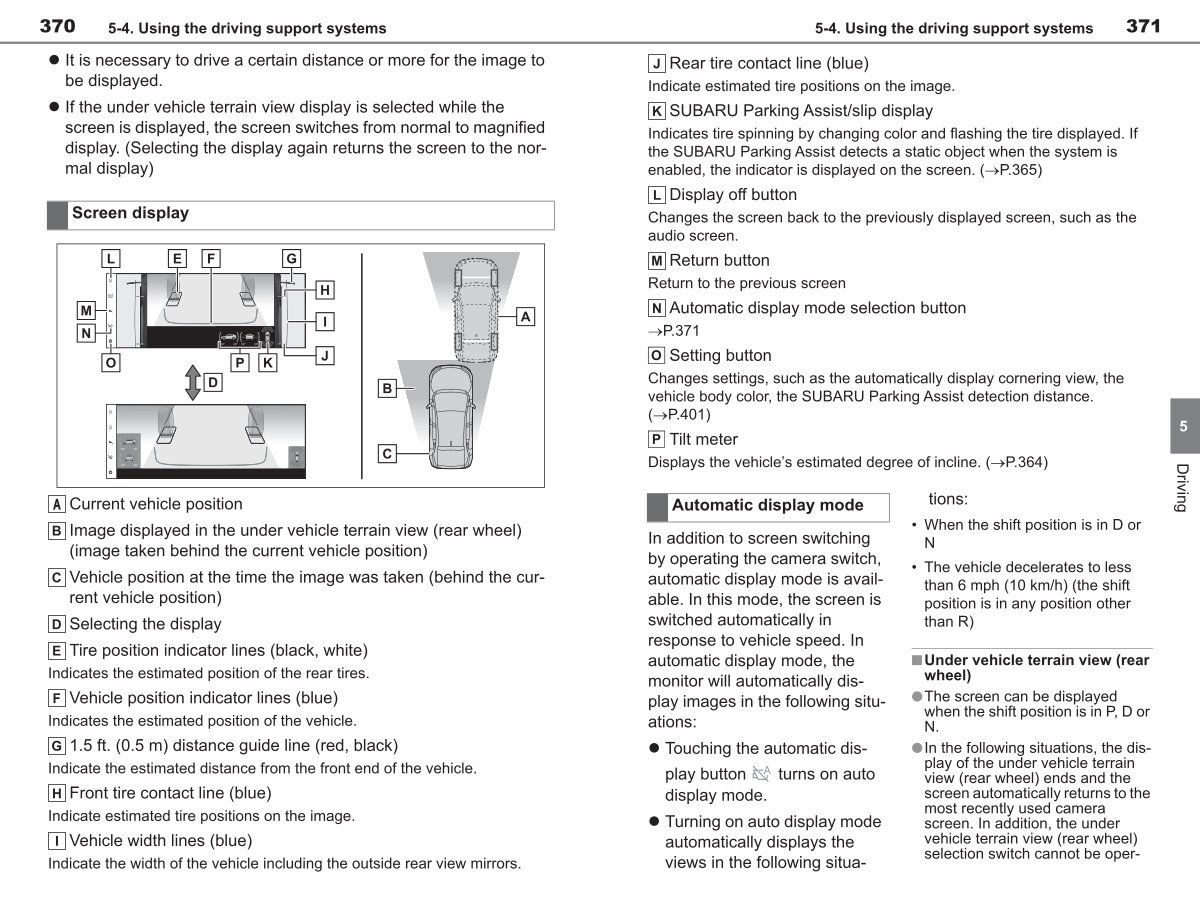

Screen display
A Current vehicle position
Image displayed in the under vehicle terrain view( rear wheel)( image taken behind the current vehicle position)
Vehicle position at the time the image was taken( behind the current vehicle position)
Selecting the display Tire position indicator lines( black, white)
Indicates the estimated position of the rear tires. Vehicle position indicator lines( blue) Indicates the estimated position of the vehicle.
1.5 ft.( 0.5 m) distance guide line( red, black) Indicate the estimated distance from the front end of the vehicle.
Front tire contact line( blue) Indicate estimated tire positions on the image.
Vehicle width lines( blue) Indicate the width of the vehicle including the outside rear view mirrors.
