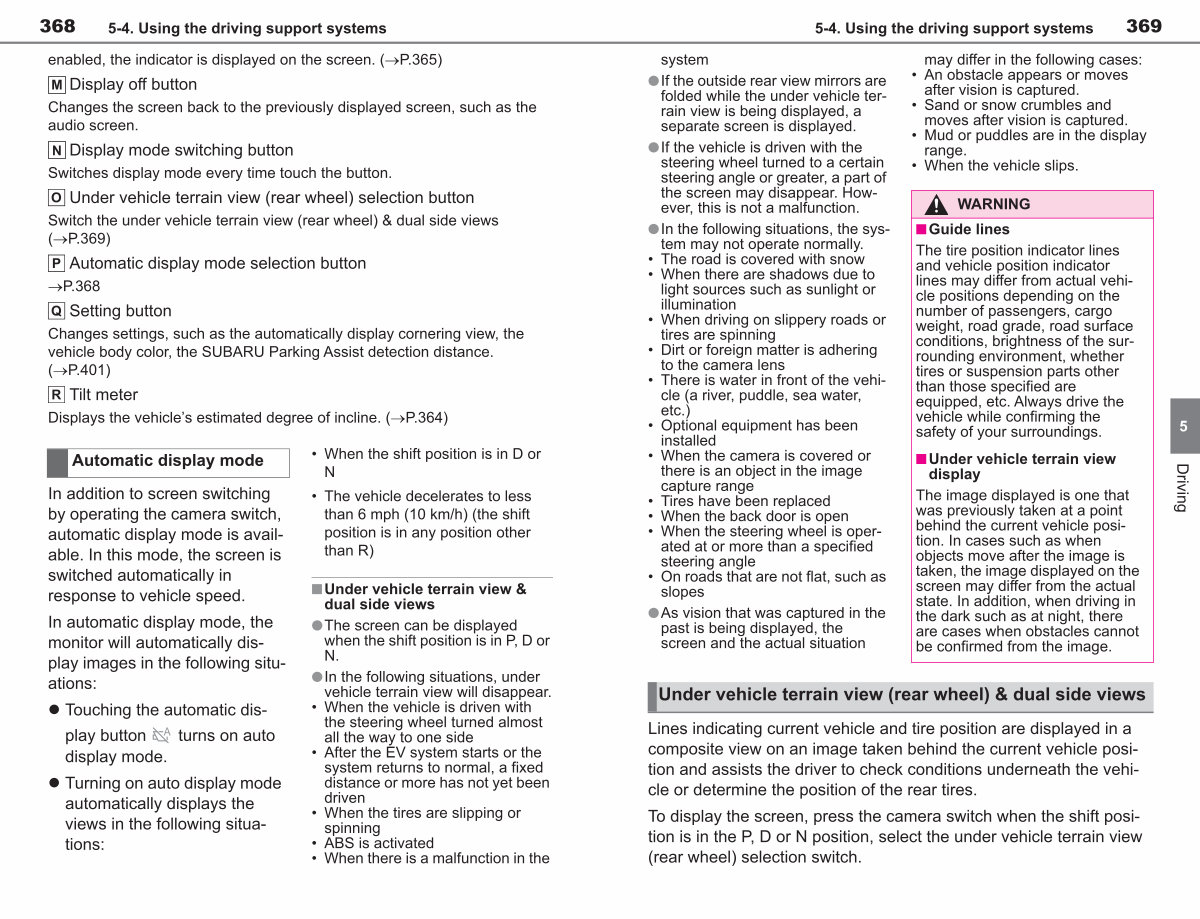

5-4. Using the driving support systems
369 system
lIf the outside rear view mirrors are folded while the under vehicle terrain view is being displayed, a separate screen is displayed.
lIf the vehicle is driven with the steering wheel turned to a certain
steering angle or greater, a part of
the screen may disappear. However, this is not a malfunction.
lIn the following situations, the system may not operate normally.
• The road is covered with snow
• When there are shadows due to light sources such as sunlight or
illumination
• When driving on slippery roads or tires are spinning
• Dirt or foreign matter is adhering to the camera lens
• There is water in front of the vehicle( a river, puddle, sea water, etc.)
• Optional equipment has been installed
• When the camera is covered or there is an object in the image capture range
• Tires have been replaced
• When the back door is open
• When the steering wheel is operated at or more than a specified steering angle
• On roads that are not flat, such as slopes
lAs vision that was captured in the
past is being displayed, the screen and the actual situation may differ in the following cases:
• An obstacle appears or moves after vision is captured.
• Sand or snow crumbles and moves after vision is captured.
• Mud or puddles are in the display range.
• When the vehicle slips.
WARNING n Guide lines
The tire position indicator lines
and vehicle position indicator lines may differ from actual vehicle positions depending on the number of passengers, cargo weight, road grade, road surface
conditions, brightness of the surrounding environment, whether tires or suspension parts other than those specified are equipped, etc. Always drive the vehicle while confirming the safety of your surroundings.
n Under vehicle terrain view display
The image displayed is one that was previously taken at a point behind the current vehicle position. In cases such as when objects move after the image is taken, the image displayed on the
screen may differ from the actual state. In addition, when driving in the dark such as at night, there
are cases when obstacles cannot be confirmed from the image.
5
Driving
Under vehicle terrain view( rear wheel) & dual side views
Lines indicating current vehicle and tire position are displayed in a composite view on an image taken behind the current vehicle position and assists the driver to check conditions underneath the vehicle or determine the position of the rear tires.
To display the screen, press the camera switch when the shift position is in the P, D or N position, select the under vehicle terrain view( rear wheel) selection switch.
