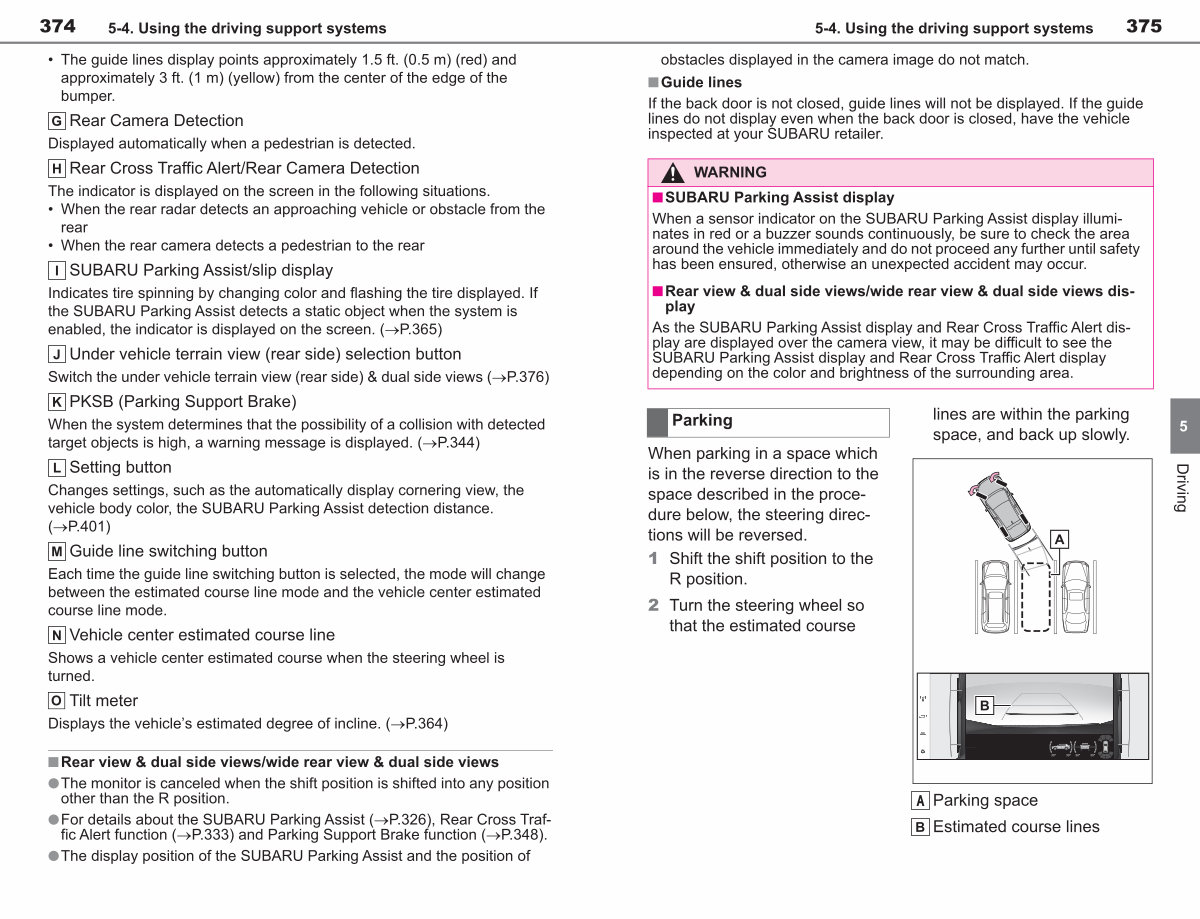

5-4. Using the driving support systems
375 obstacles displayed in the camera image do not match. n Guide lines
If the back door is not closed, guide lines will not be displayed. If the guide lines do not display even when the back door is closed, have the vehicle inspected at your SUBARU retailer.
WARNING n SUBARU Parking Assist display
When a sensor indicator on the SUBARU Parking Assist display illuminates in red or a buzzer sounds continuously, be sure to check the area around the vehicle immediately and do not proceed any further until safety
has been ensured, otherwise an unexpected accident may occur.
n Rear view & dual side views / wide rear view & dual side views display
As the SUBARU Parking Assist display and Rear Cross Traffic Alert display are displayed over the camera view, it may be difficult to see the SUBARU Parking Assist display and Rear Cross Traffic Alert display depending on the color and brightness of the surrounding area.
Parking
When parking in a space which is in the reverse direction to the space described in the procedure below, the steering directions will be reversed. 1 Shift the shift position to the
R position.
2 Turn the steering wheel so that the estimated course lines are within the parking space, and back up slowly.
5
Driving
A Parking space Estimated course lines
