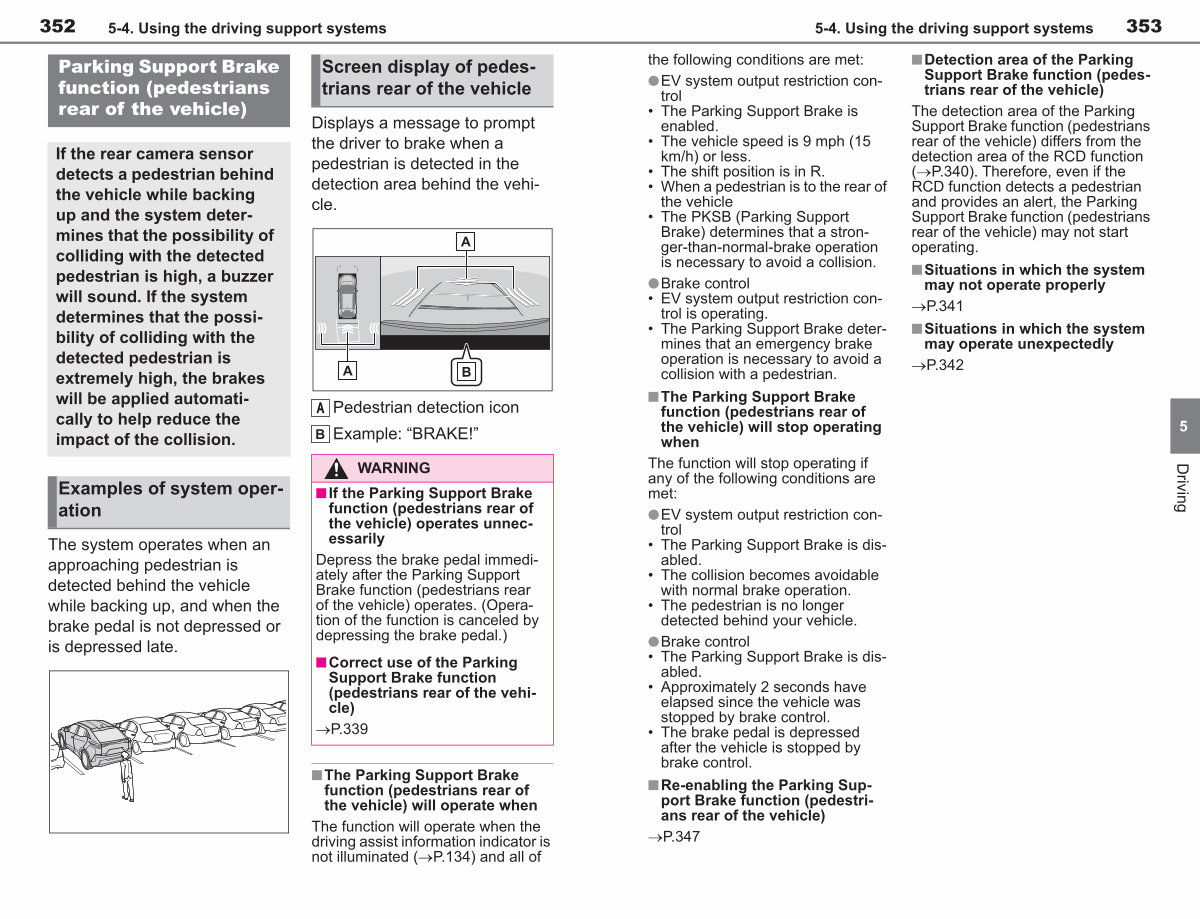

352 5-4. Using the driving support systems
Parking Support Brake function( pedestrians rear of the vehicle)
If the rear camera sensor detects a pedestrian behind the vehicle while backing up and the system determines that the possibility of colliding with the detected pedestrian is high, a buzzer will sound. If the system determines that the possibility of colliding with the detected pedestrian is extremely high, the brakes will be applied automatically to help reduce the impact of the collision.
Examples of system operation
The system operates when an approaching pedestrian is detected behind the vehicle while backing up, and when the brake pedal is not depressed or is depressed late.
Screen display of pedestrians rear of the vehicle
Displays a message to prompt the driver to brake when a pedestrian is detected in the detection area behind the vehicle.
A Pedestrian detection icon Example:“ BRAKE!”
WARNING
n If the Parking Support Brake function( pedestrians rear of
the vehicle) operates unnecessarily
Depress the brake pedal immediately after the Parking Support
Brake function( pedestrians rear
of the vehicle) operates.( Operation of the function is canceled by
depressing the brake pedal.)
n Correct use of the Parking Support Brake function
( pedestrians rear of the vehicle)
�P. 339
nThe Parking Support Brake function( pedestrians rear of the vehicle) will operate when
The function will operate when the driving assist information indicator is
not illuminated( �P. 134) and all of
