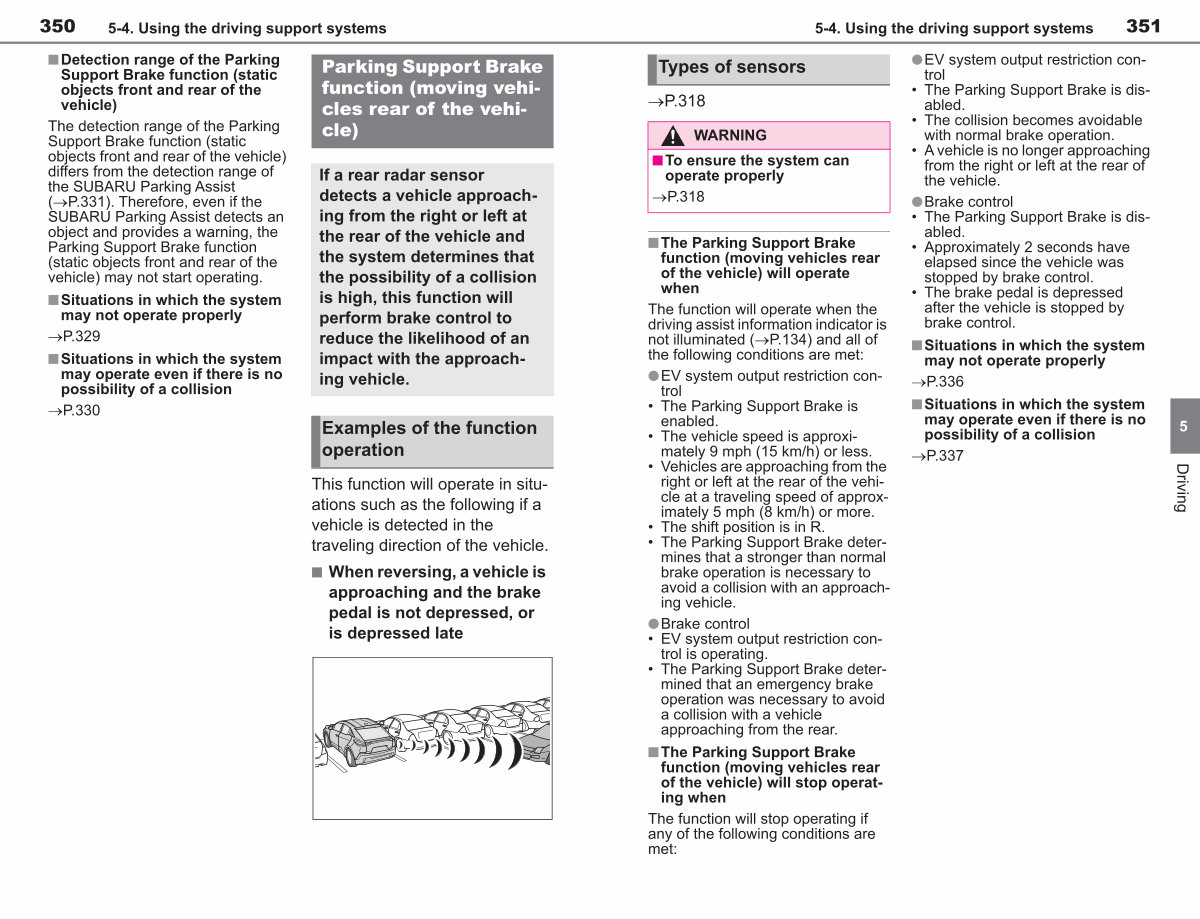

5-4. Using the driving support systems
351
Types of sensors �P. 318
WARNING
n To ensure the system can operate properly
�P. 318
n The Parking Support Brake function( moving vehicles rear
of the vehicle) will operate when
The function will operate when the driving assist information indicator is not illuminated( �P. 134) and all of the following conditions are met:
l EV system output restriction control
• The Parking Support Brake is enabled.
• The vehicle speed is approximately 9 mph( 15 km / h) or less.
• Vehicles are approaching from the right or left at the rear of the vehicle at a traveling speed of approximately 5 mph( 8 km / h) or more.
• The shift position is in R.
• The Parking Support Brake determines that a stronger than normal
brake operation is necessary to avoid a collision with an approaching vehicle.
l Brake control
• EV system output restriction control is operating.
• The Parking Support Brake determined that an emergency brake
operation was necessary to avoid a collision with a vehicle approaching from the rear.
n The Parking Support Brake function( moving vehicles rear of the vehicle) will stop operating when
The function will stop operating if any of the following conditions are
met: lEV system output restriction control
• The Parking Support Brake is disabled.
• The collision becomes avoidable with normal brake operation.
• A vehicle is no longer approaching
from the right or left at the rear of the vehicle.
lBrake control
• The Parking Support Brake is disabled.
• Approximately 2 seconds have elapsed since the vehicle was
stopped by brake control.
• The brake pedal is depressed after the vehicle is stopped by
brake control.
nSituations in which the system may not operate properly
�P. 336
nSituations in which the system
may operate even if there is no possibility of a collision
�P. 337
5
Driving
