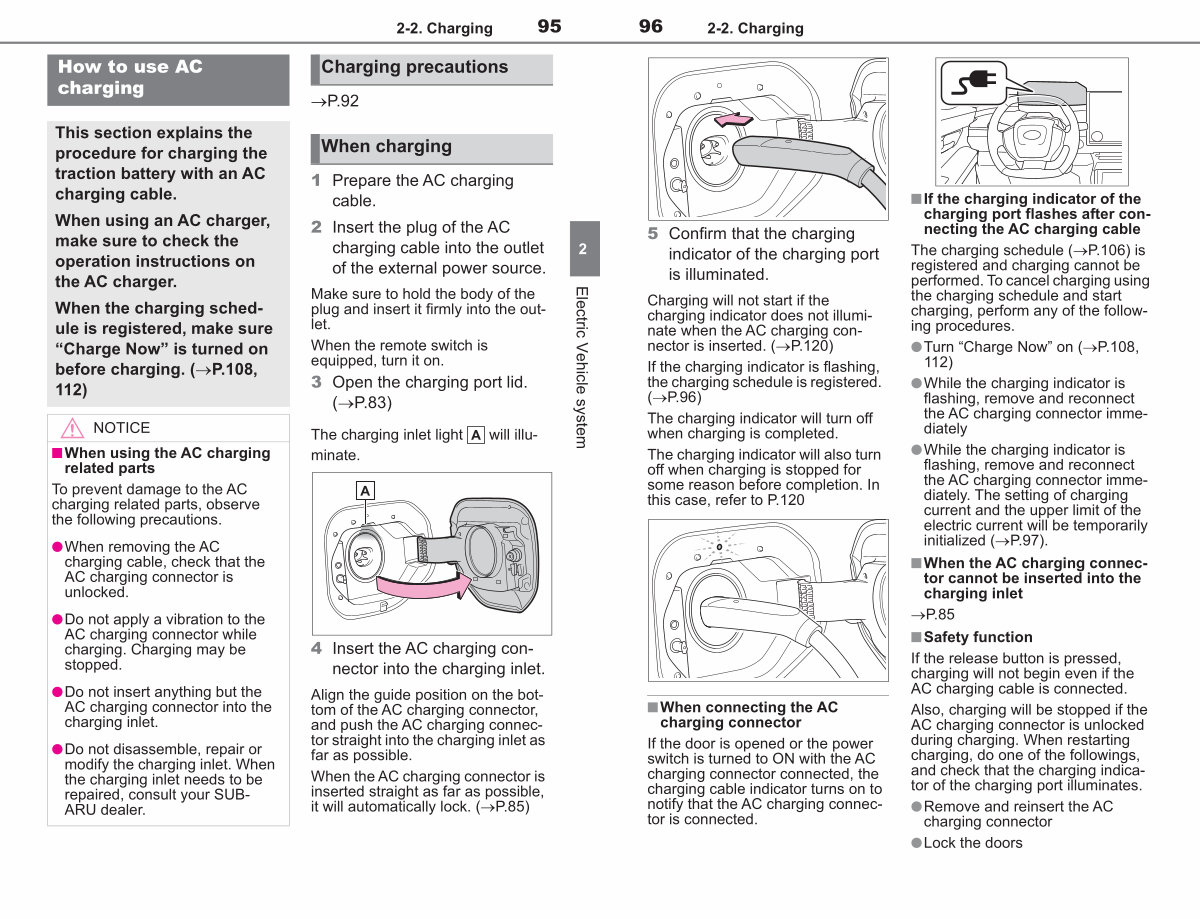

96 2-2. Charging
5 Confirm that the charging indicator of the charging port is illuminated.
Charging will not start if the charging indicator does not illuminate when the AC charging connector is inserted.( �P. 120)
If the charging indicator is flashing, the charging schedule is registered.( �P. 96)
The charging indicator will turn off when charging is completed.
The charging indicator will also turn off when charging is stopped for some reason before completion. In this case, refer to P. 120
■ When connecting the AC charging connector
If the door is opened or the power switch is turned to ON with the AC
charging connector connected, the charging cable indicator turns on to notify that the AC charging connector is connected.
■ If the charging indicator of the charging port flashes after connecting the AC charging cable
The charging schedule( �P. 106) is registered and charging cannot be
performed. To cancel charging using the charging schedule and start charging, perform any of the following procedures.
●Turn“ Charge Now” on( �P. 108, 112)
●While the charging indicator is flashing, remove and reconnect the AC charging connector immediately
●While the charging indicator is flashing, remove and reconnect
the AC charging connector immediately. The setting of charging current and the upper limit of the
electric current will be temporarily initialized( �P. 97).
■ When the AC charging connector cannot be inserted into the
charging inlet
�P. 85
■ Safety function
If the release button is pressed, charging will not begin even if the
AC charging cable is connected.
Also, charging will be stopped if the AC charging connector is unlocked during charging. When restarting charging, do one of the followings, and check that the charging indicator of the charging port illuminates.
●Remove and reinsert the AC charging connector
●Lock the doors
