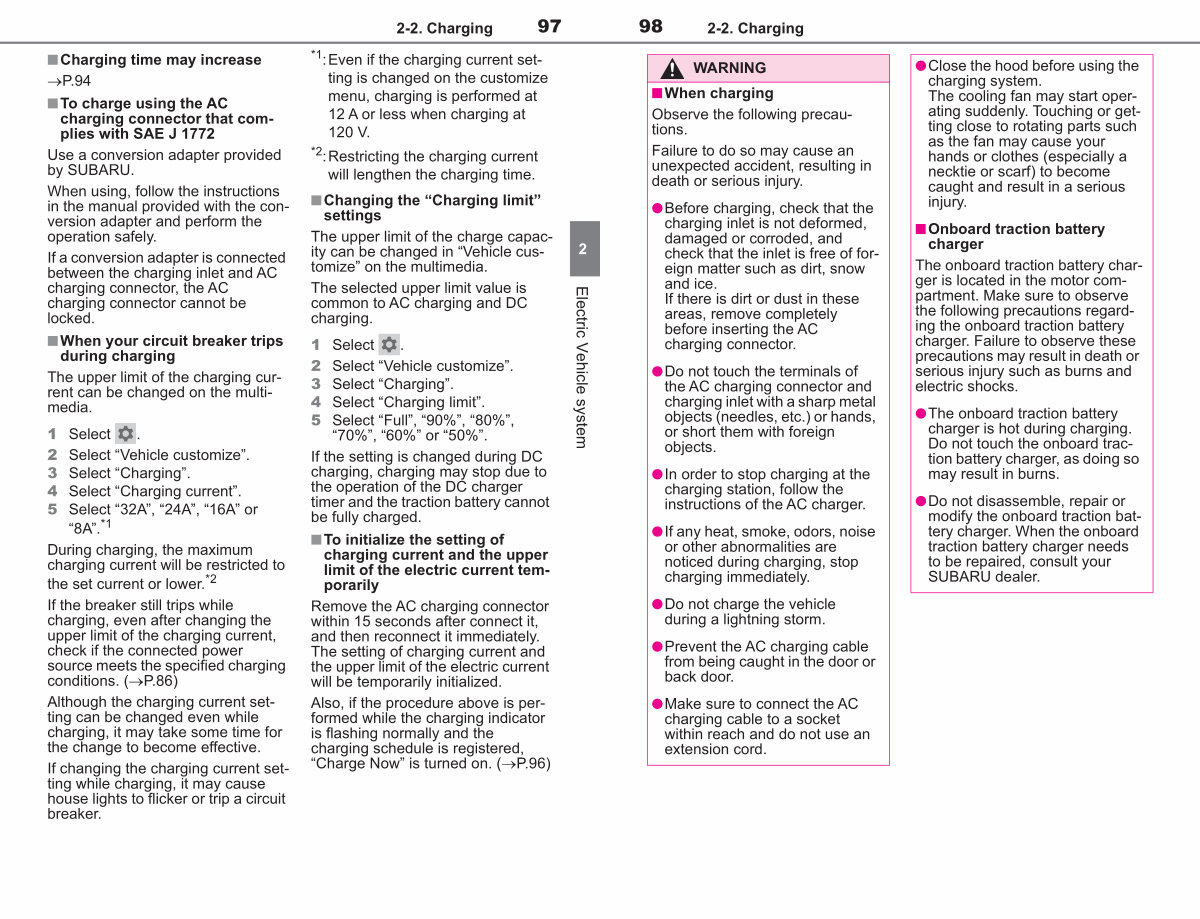

2-2. Charging
97
■ Charging time may increase �P. 94
■ To charge using the AC charging connector that complies with SAE J 1772
Use a conversion adapter provided by SUBARU.
When using, follow the instructions in the manual provided with the conversion adapter and perform the
operation safely.
If a conversion adapter is connected between the charging inlet and AC charging connector, the AC charging connector cannot be
locked.
■ When your circuit breaker trips during charging
The upper limit of the charging current can be changed on the multimedia.
1 Select. 2 Select“ Vehicle customize”. 3 Select“ Charging”. 4 Select“ Charging current”. 5 Select“ 32A”,“ 24A”,“ 16A” or
“ 8A”. * 1 During charging, the maximum charging current will be restricted to
the set current or lower. * 2 If the breaker still trips while charging, even after changing the
upper limit of the charging current, check if the connected power source meets the specified charging
conditions.( �P. 86)
Although the charging current setting can be changed even while charging, it may take some time for the change to become effective.
If changing the charging current setting while charging, it may cause house lights to flicker or trip a circuit breaker.
* 1: Even if the charging current setting is changed on the customize menu, charging is performed at 12 A or less when charging at 120 V.
* 2: Restricting the charging current will lengthen the charging time.
■ Changing the“ Charging limit” settings
The upper limit of the charge capacity can be changed in“ Vehicle customize” on the multimedia.
The selected upper limit value is common to AC charging and DC
charging.
1 Select. 2 Select“ Vehicle customize”. 3 Select“ Charging”. 4 Select“ Charging limit”.
5 Select“ Full”,“ 90 %”,“ 80 %”,“ 70 %”,“ 60 %” or“ 50 %”.
If the setting is changed during DC charging, charging may stop due to the operation of the DC charger
timer and the traction battery cannot be fully charged.
■ To initialize the setting of charging current and the upper
limit of the electric current temporarily
Remove the AC charging connector within 15 seconds after connect it, and then reconnect it immediately.
The setting of charging current and the upper limit of the electric current will be temporarily initialized.
Also, if the procedure above is performed while the charging indicator
is flashing normally and the charging schedule is registered,“ Charge Now” is turned on.( �P. 96)
2
Electric Vehicle system
