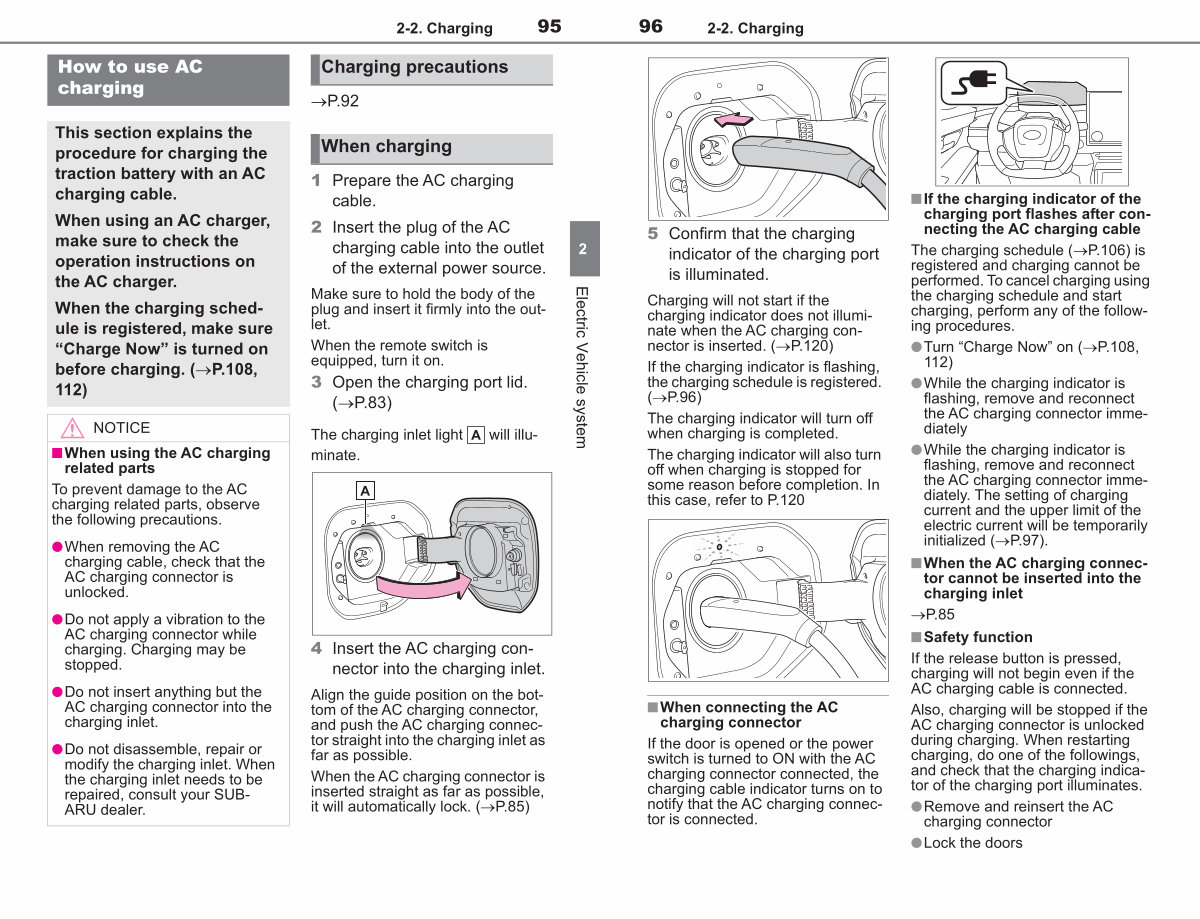

How to use AC charging
This section explains the procedure for charging the traction battery with an AC charging cable.
When using an AC charger, make sure to check the operation instructions on the AC charger.
When the charging schedule is registered, make sure“ Charge Now” is turned on before charging.( �P. 108, 112)
NOTICE
■ When using the AC charging related parts
To prevent damage to the AC charging related parts, observe the following precautions.
●When removing the AC charging cable, check that the AC charging connector is
unlocked.
●Do not apply a vibration to the AC charging connector while charging. Charging may be
stopped.
●Do not insert anything but the AC charging connector into the charging inlet.
●Do not disassemble, repair or modify the charging inlet. When the charging inlet needs to be repaired, consult your SUB- ARU dealer.
Charging precautions �P. 92
When charging
1 Prepare the AC charging cable.
2 Insert the plug of the AC charging cable into the outlet of the external power source.
Make sure to hold the body of the plug and insert it firmly into the outlet.
When the remote switch is equipped, turn it on.
3 Open the charging port lid.( �P. 83) will illu-
The charging inlet light minate.
4 Insert the AC charging connector into the charging inlet.
Align the guide position on the bottom of the AC charging connector, and push the AC charging connector straight into the charging inlet as far as possible.
When the AC charging connector is inserted straight as far as possible, it will automatically lock.( �P. 85)
