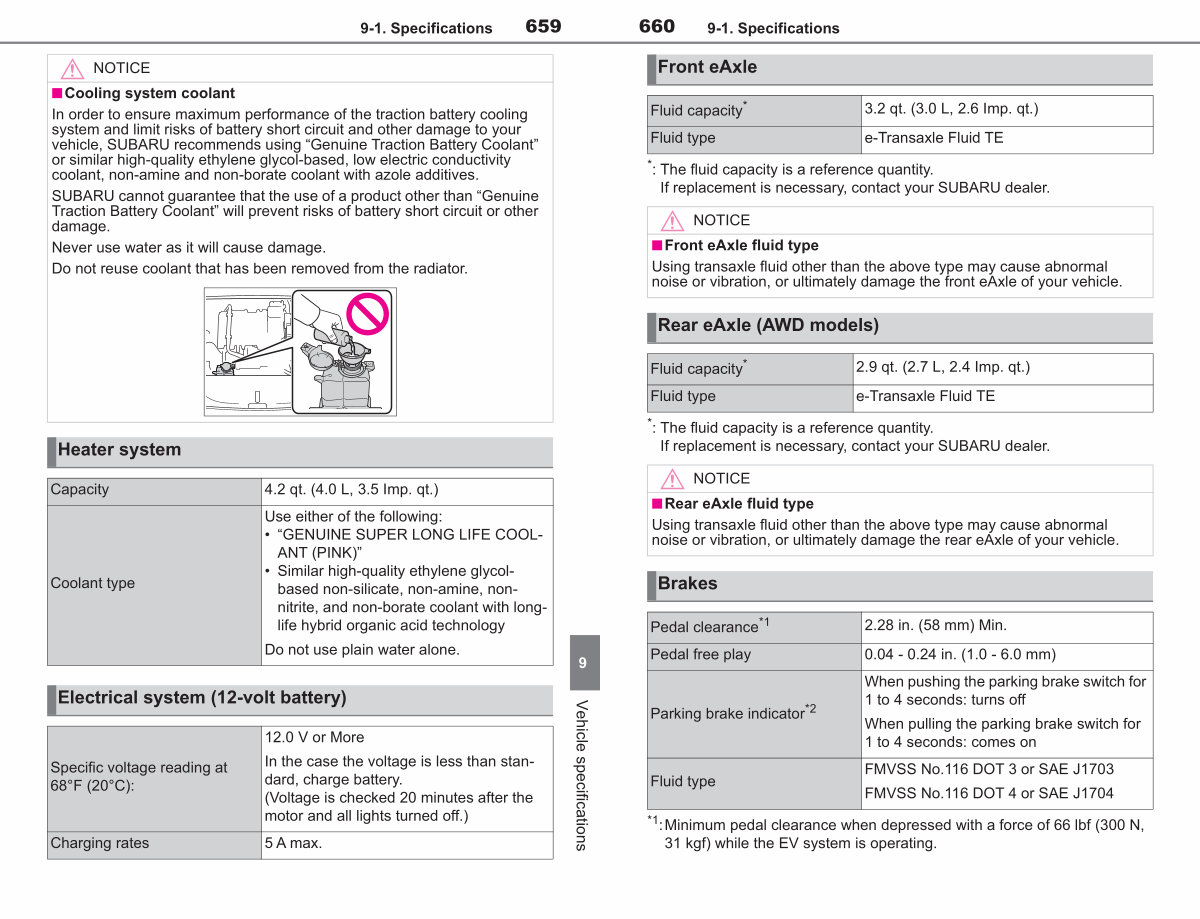

660 9-1. Specifications
Front eAxle
Fluid capacity * 3.2 qt.( 3.0 L, 2.6 Imp. qt.) Fluid type e-Transaxle Fluid TE
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your SUBARU dealer.
NOTICE
■ Front eAxle fluid type Using transaxle fluid other than the above type may cause abnormal noise or vibration, or ultimately damage the front eAxle of your vehicle.
Rear eAxle( AWD models)
Fluid capacity * 2.9 qt.( 2.7 L, 2.4 Imp. qt.) Fluid type e-Transaxle Fluid TE
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your SUBARU dealer.
NOTICE
■ Rear eAxle fluid type
Using transaxle fluid other than the above type may cause abnormal noise or vibration, or ultimately damage the rear eAxle of your vehicle.
Brakes
Pedal clearance * 1 2.28 in.( 58 mm) Min. Pedal free play 0.04- 0.24 in.( 1.0- 6.0 mm)
Parking brake indicator * 2
Fluid type
When pushing the parking brake switch for 1 to 4 seconds: turns off
When pulling the parking brake switch for 1 to 4 seconds: comes on
FMVSS No. 116 DOT 3 or SAE J1703 FMVSS No. 116 DOT 4 or SAE J1704
* 1: Minimum pedal clearance when depressed with a force of 66 lbf( 300 N, 31 kgf) while the EV system is operating.
