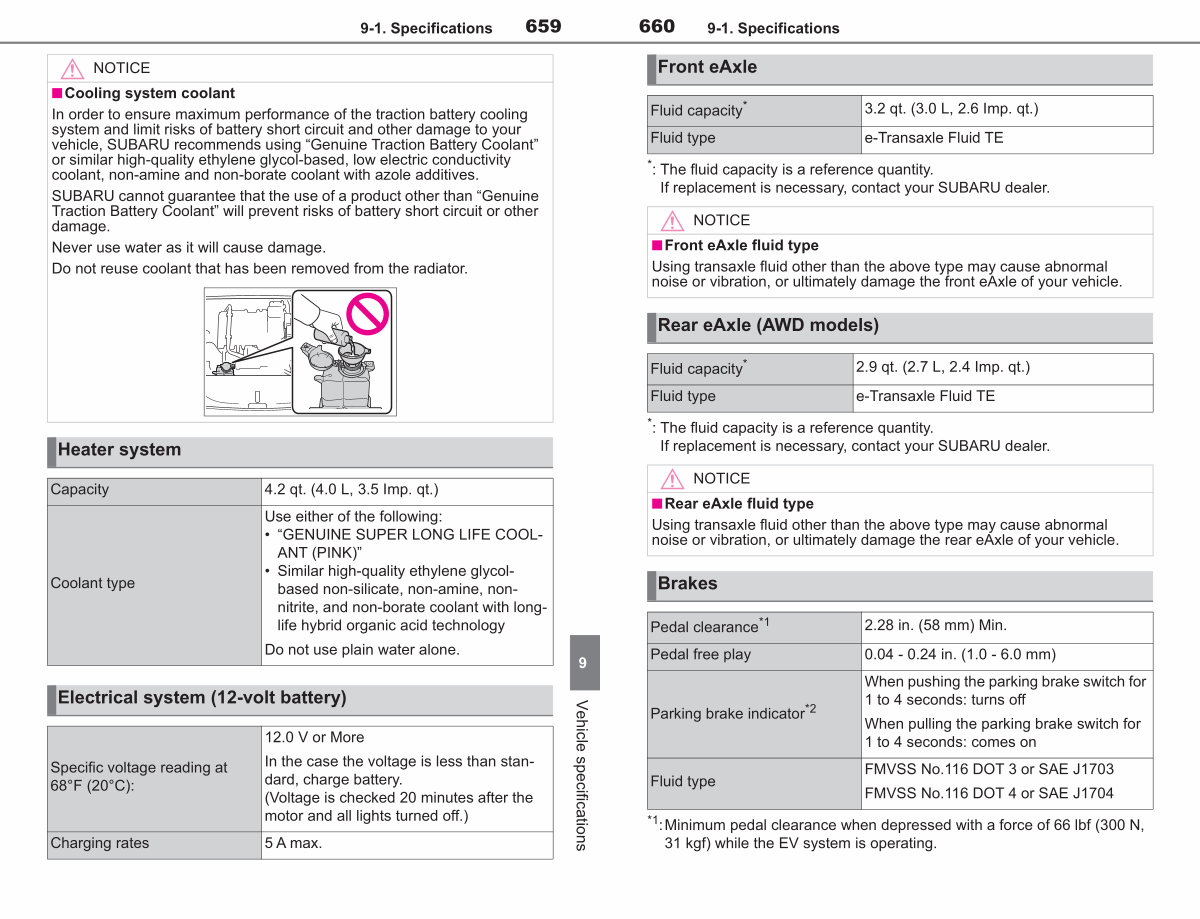

9-1. Specifications
659
NOTICE
■ Cooling system coolant In order to ensure maximum performance of the traction battery cooling system and limit risks of battery short circuit and other damage to your
vehicle, SUBARU recommends using“ Genuine Traction Battery Coolant” or similar high-quality ethylene glycol-based, low electric conductivity coolant, non-amine and non-borate coolant with azole additives.
SUBARU cannot guarantee that the use of a product other than“ Genuine Traction Battery Coolant” will prevent risks of battery short circuit or other
damage.
Never use water as it will cause damage. Do not reuse coolant that has been removed from the radiator.
Heater system
Capacity 4.2 qt.( 4.0 L, 3.5 Imp. qt.)
Coolant type
Use either of the following:
•“ GENUINE SUPER LONG LIFE COOL- ANT( PINK)”
• Similar high-quality ethylene glycolbased non-silicate, non-amine, nonnitrite, and non-borate coolant with longlife hybrid organic acid technology
Do not use plain water alone. 9
Electrical system( 12-volt battery)
Specific voltage reading at 68 ° F( 20 ° C):
Charging rates 5 A max.
12.0 V or More
In the case the voltage is less than standard, charge battery.( Voltage is checked 20 minutes after the motor and all lights turned off.)
Vehicle specifications
