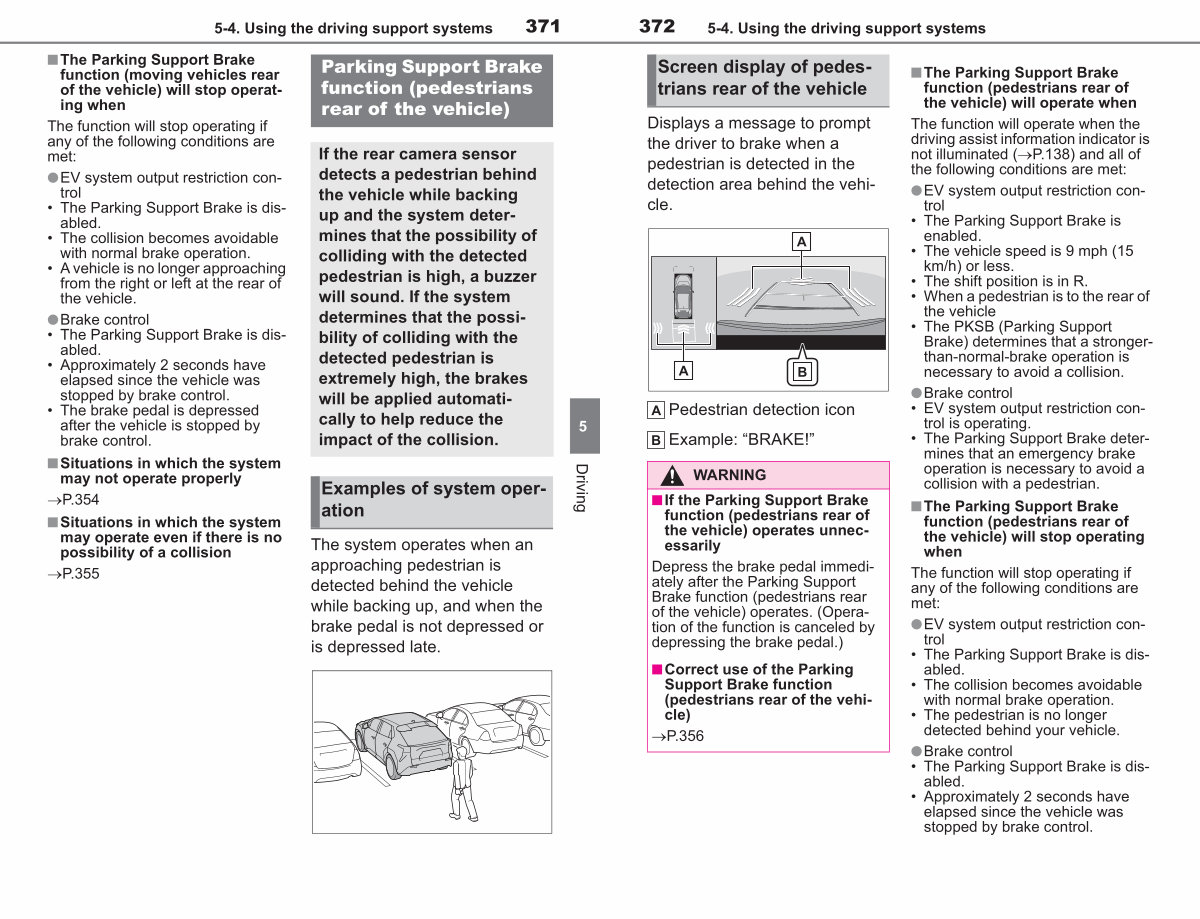

5-4. Using the driving support systems
371
■ The Parking Support Brake function( moving vehicles rear of the vehicle) will stop operating when
The function will stop operating if any of the following conditions are met:
● EV system output restriction control
• The Parking Support Brake is disabled.
• The collision becomes avoidable with normal brake operation.
• A vehicle is no longer approaching from the right or left at the rear of the vehicle.
● Brake control
• The Parking Support Brake is disabled.
• Approximately 2 seconds have elapsed since the vehicle was
stopped by brake control.
• The brake pedal is depressed after the vehicle is stopped by brake control.
■ Situations in which the system may not operate properly
�P. 354
■ Situations in which the system may operate even if there is no possibility of a collision
�P. 355
Parking Support Brake function( pedestrians rear of the vehicle)
If the rear camera sensor detects a pedestrian behind the vehicle while backing up and the system determines that the possibility of colliding with the detected pedestrian is high, a buzzer will sound. If the system determines that the possibility of colliding with the detected pedestrian is extremely high, the brakes will be applied automatically to help reduce the impact of the collision.
Examples of system operation
The system operates when an approaching pedestrian is detected behind the vehicle while backing up, and when the brake pedal is not depressed or is depressed late.
