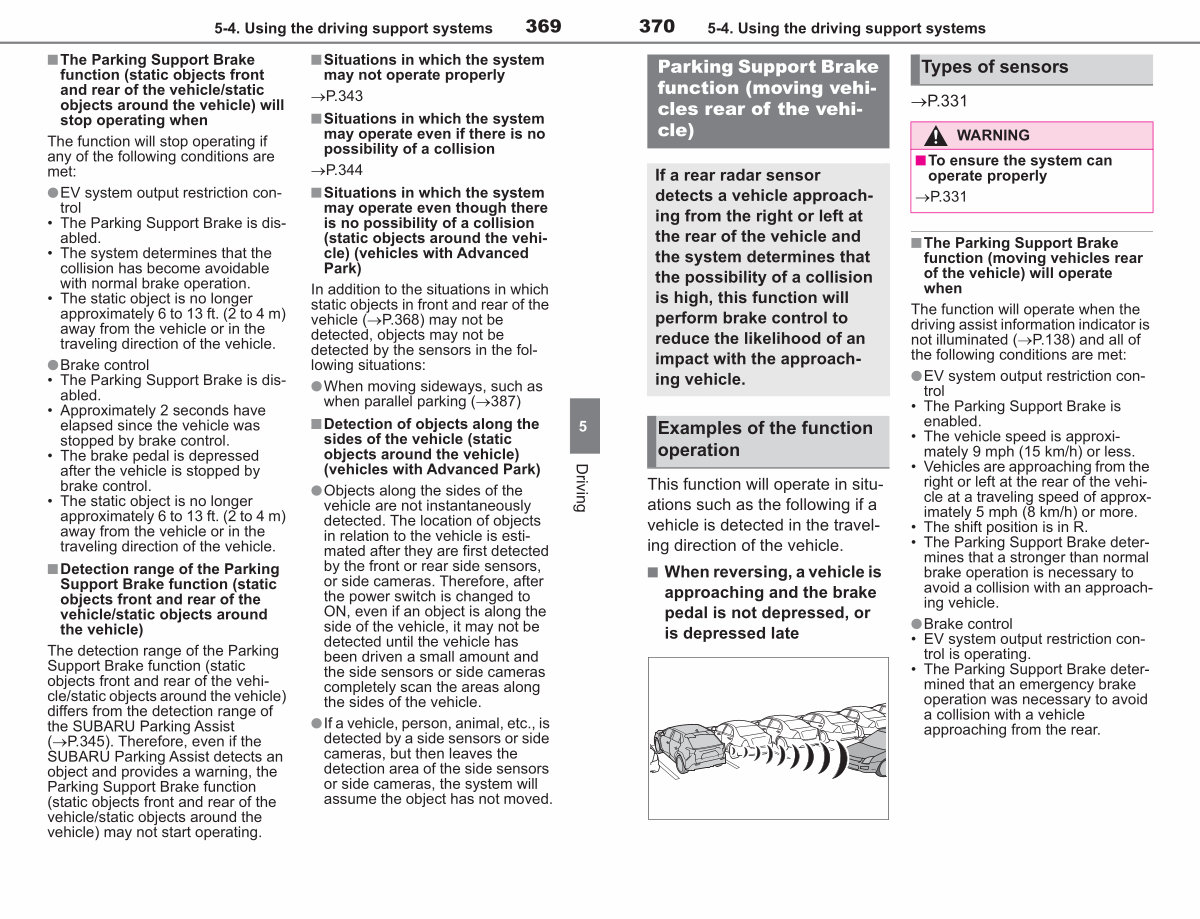

370 5-4. Using the driving support systems
Parking Support Brake function( moving vehicles rear of the vehicle)
If a rear radar sensor detects a vehicle approaching from the right or left at the rear of the vehicle and the system determines that the possibility of a collision is high, this function will perform brake control to reduce the likelihood of an impact with the approaching vehicle.
Examples of the function operation
This function will operate in situations such as the following if a vehicle is detected in the traveling direction of the vehicle.
■ When reversing, a vehicle is approaching and the brake pedal is not depressed, or is depressed late
Types of sensors �P. 331
WARNING
■ To ensure the system can operate properly
�P. 331
■ The Parking Support Brake function( moving vehicles rear of the vehicle) will operate
when
The function will operate when the
driving assist information indicator is not illuminated( �P. 138) and all of the following conditions are met:
● EV system output restriction control
• The Parking Support Brake is enabled.
• The vehicle speed is approximately 9 mph( 15 km / h) or less.
• Vehicles are approaching from the right or left at the rear of the vehicle at a traveling speed of approximately 5 mph( 8 km / h) or more.
• The shift position is in R.
• The Parking Support Brake determines that a stronger than normal brake operation is necessary to
avoid a collision with an approaching vehicle.
● Brake control
• EV system output restriction control is operating.
• The Parking Support Brake determined that an emergency brake operation was necessary to avoid
a collision with a vehicle approaching from the rear.
