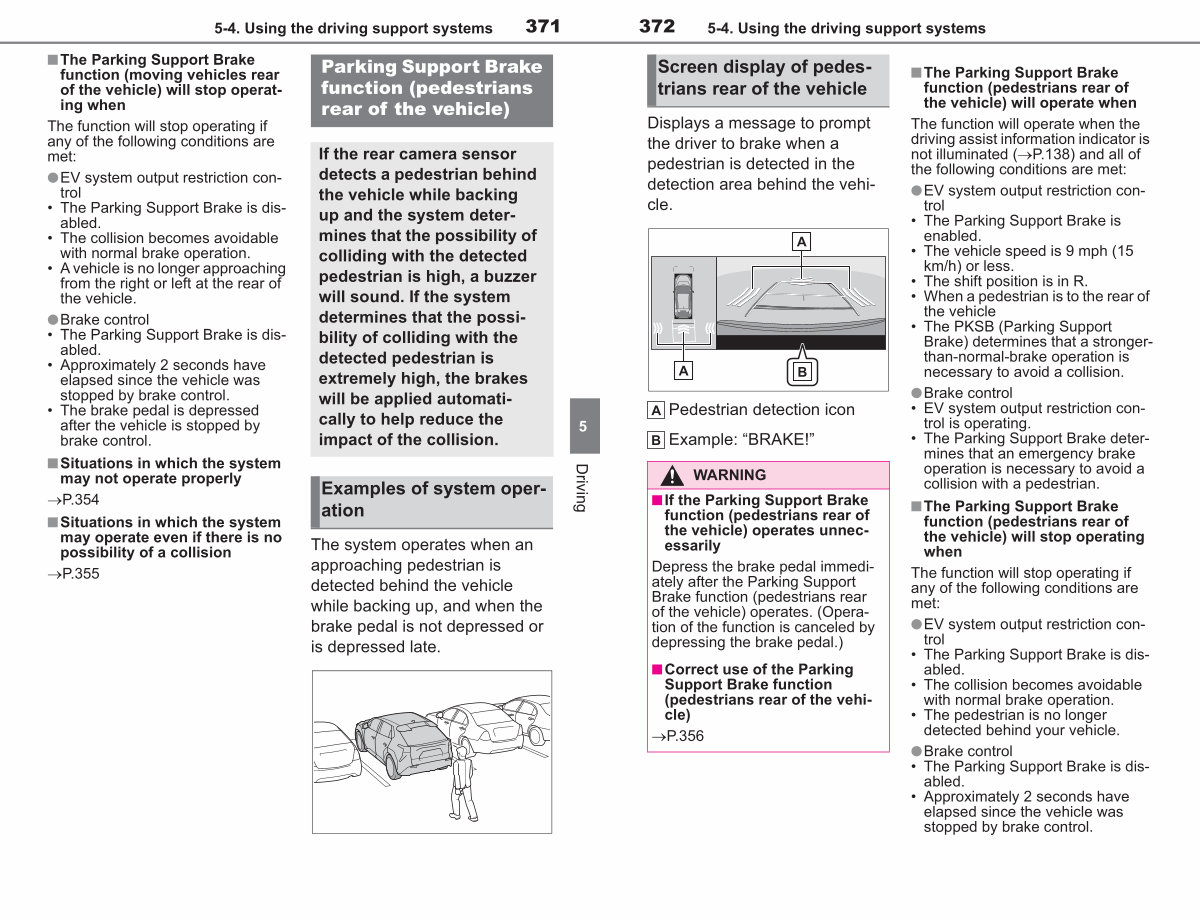

372 5-4. Using the driving support systems
Screen display of pedestrians rear of the vehicle
Displays a message to prompt the driver to brake when a pedestrian is detected in the detection area behind the vehicle.
Pedestrian detection icon Example:“ BRAKE!”
WARNING
■ If the Parking Support Brake function( pedestrians rear of the vehicle) operates unnecessarily
Depress the brake pedal immediately after the Parking Support Brake function( pedestrians rear of the vehicle) operates.( Operation of the function is canceled by depressing the brake pedal.)
■ Correct use of the Parking Support Brake function
( pedestrians rear of the vehicle)
�P. 356
■ The Parking Support Brake function( pedestrians rear of the vehicle) will operate when
The function will operate when the driving assist information indicator is not illuminated( �P. 138) and all of the following conditions are met:
● EV system output restriction control
• The Parking Support Brake is
enabled.
• The vehicle speed is 9 mph( 15 km / h) or less.
• The shift position is in R.
• When a pedestrian is to the rear of the vehicle
• The PKSB( Parking Support Brake) determines that a strongerthan-normal-brake operation is
necessary to avoid a collision.
● Brake control
• EV system output restriction control is operating.
• The Parking Support Brake determines that an emergency brake operation is necessary to avoid a collision with a pedestrian.
■ The Parking Support Brake
function( pedestrians rear of the vehicle) will stop operating when
The function will stop operating if any of the following conditions are
met:
● EV system output restriction control
• The Parking Support Brake is disabled.
• The collision becomes avoidable with normal brake operation.
• The pedestrian is no longer detected behind your vehicle.
● Brake control
• The Parking Support Brake is disabled.
• Approximately 2 seconds have elapsed since the vehicle was stopped by brake control.
