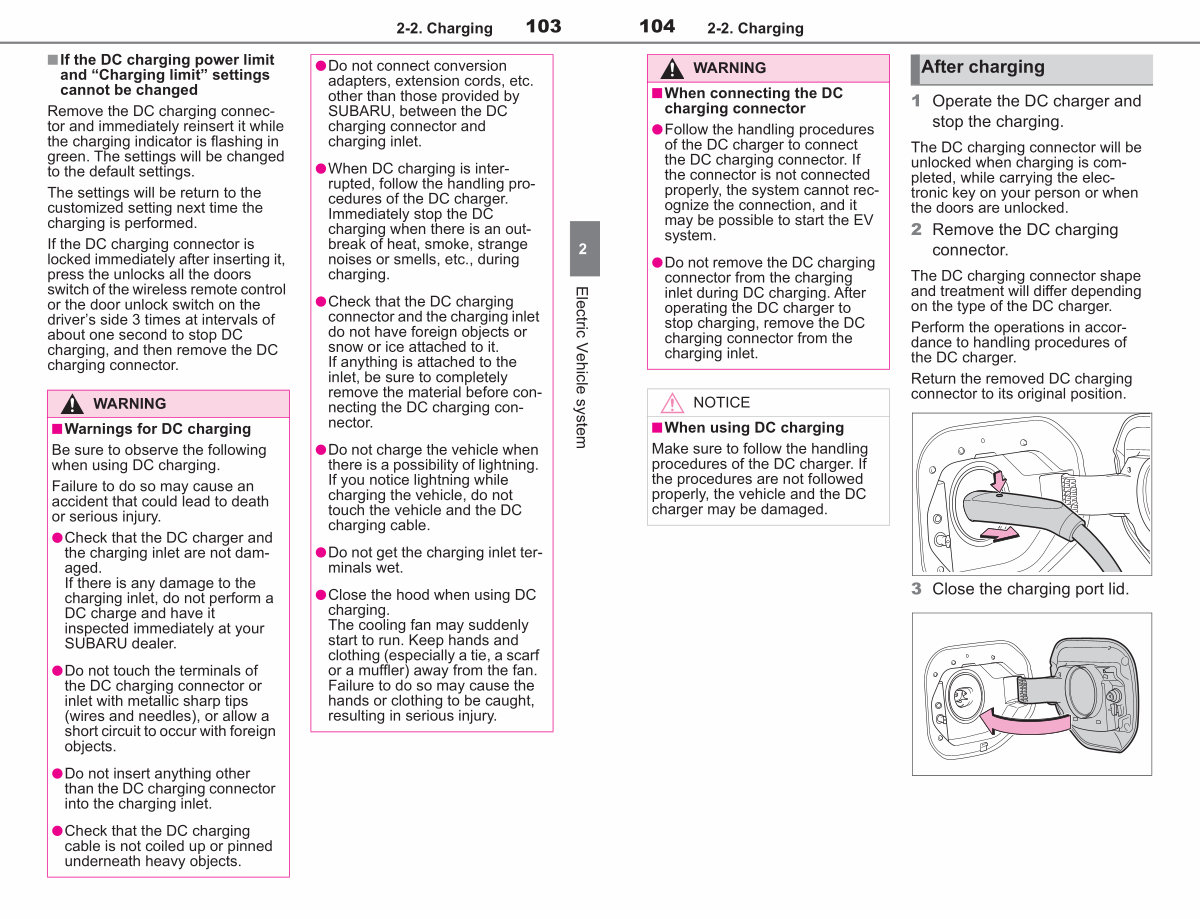

104 2-2. Charging
WARNING
■ When connecting the DC charging connector
●Follow the handling procedures
of the DC charger to connect the DC charging connector. If the connector is not connected
properly, the system cannot recognize the connection, and it may be possible to start the EV
system.
●Do not remove the DC charging connector from the charging
inlet during DC charging. After operating the DC charger to stop charging, remove the DC
charging connector from the charging inlet.
NOTICE
■ When using DC charging
Make sure to follow the handling procedures of the DC charger. If the procedures are not followed properly, the vehicle and the DC
charger may be damaged.
After charging
1 Operate the DC charger and stop the charging.
The DC charging connector will be unlocked when charging is completed, while carrying the electronic key on your person or when the doors are unlocked.
2 Remove the DC charging connector.
The DC charging connector shape and treatment will differ depending on the type of the DC charger.
Perform the operations in accordance to handling procedures of the DC charger.
Return the removed DC charging connector to its original position.
3 Close the charging port lid.
