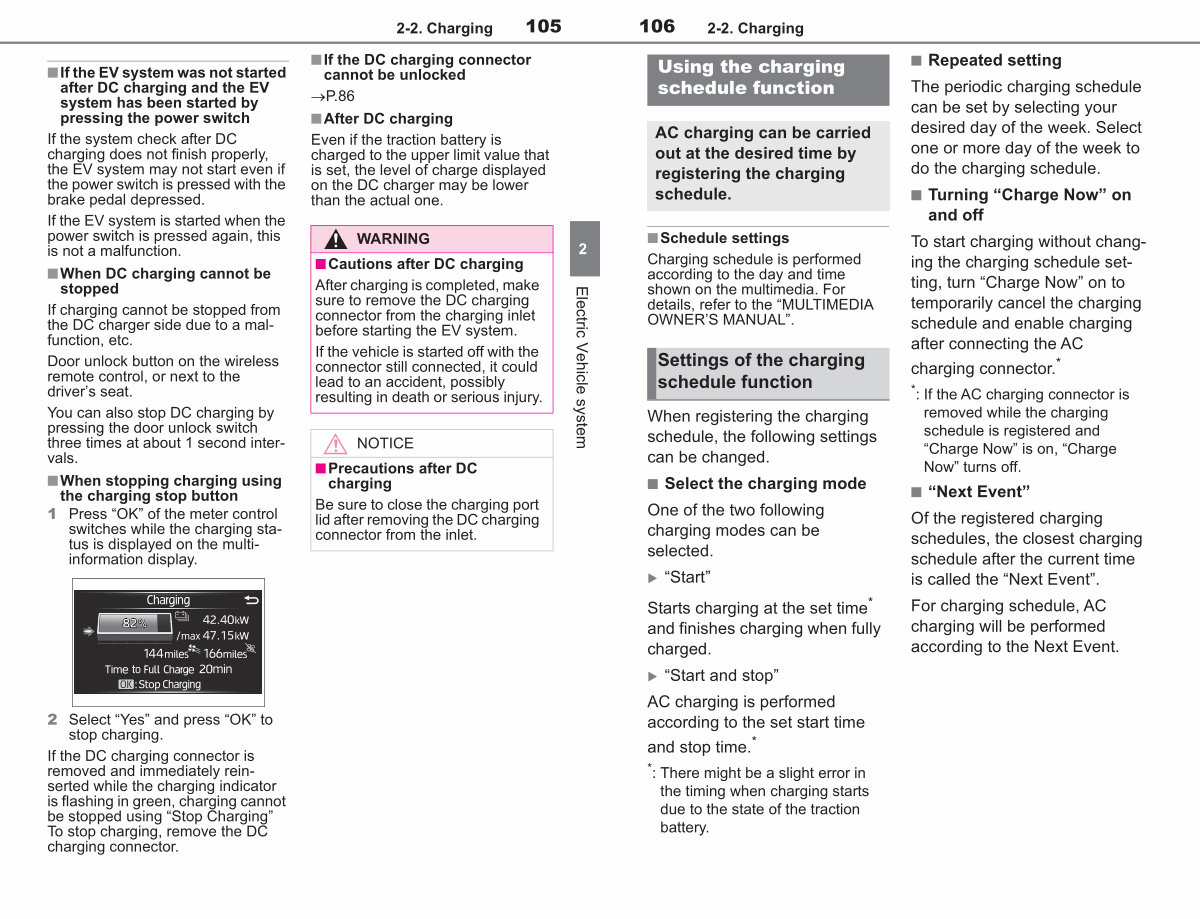

2-2. Charging
105
■ If the EV system was not started after DC charging and the EV system has been started by pressing the power switch
If the system check after DC charging does not finish properly, the EV system may not start even if the power switch is pressed with the
brake pedal depressed.
If the EV system is started when the power switch is pressed again, this is not a malfunction.
■ When DC charging cannot be stopped
If charging cannot be stopped from the DC charger side due to a malfunction, etc.
Door unlock button on the wireless remote control, or next to the driver’ s seat.
You can also stop DC charging by pressing the door unlock switch three times at about 1 second intervals.
■ When stopping charging using the charging stop button
1 Press“ OK” of the meter control switches while the charging status is displayed on the multiinformation display.
■ If the DC charging connector cannot be unlocked
�P. 86
■ After DC charging
Even if the traction battery is charged to the upper limit value that is set, the level of charge displayed on the DC charger may be lower
than the actual one.
WARNING
■ Cautions after DC charging
After charging is completed, make sure to remove the DC charging
connector from the charging inlet before starting the EV system.
If the vehicle is started off with the connector still connected, it could lead to an accident, possibly resulting in death or serious injury.
NOTICE
■ Precautions after DC charging
Be sure to close the charging port lid after removing the DC charging connector from the inlet.
2
Electric Vehicle system
2 Select“ Yes” and press“ OK” to stop charging.
If the DC charging connector is removed and immediately reinserted while the charging indicator
is flashing in green, charging cannot be stopped using“ Stop Charging” To stop charging, remove the DC
charging connector.
